Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy

Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy

Two-wire Pressure Transducer

4 mA to 20 mA output Pressure Transducer

0.25% accuracy Pressure Transducer

ブランド名:

Honeywell

モデル番号:

モデル811fm

連絡 ください
引金 を 求め て ください
製品詳細
ハイライト:

Two-wire Pressure Transducer

,

4 mA to 20 mA output Pressure Transducer

,

0.25% accuracy Pressure Transducer

支払いと送料の条件
最小注文数量
1pcs
パッケージの詳細
各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています
受渡し時間
5-8勤務日
支払条件
L/C、D/A、T/T、D/P、Western Union、MoneyGram
供給の能力
交渉可能な1週間あたり1000個/ピース
製品説明

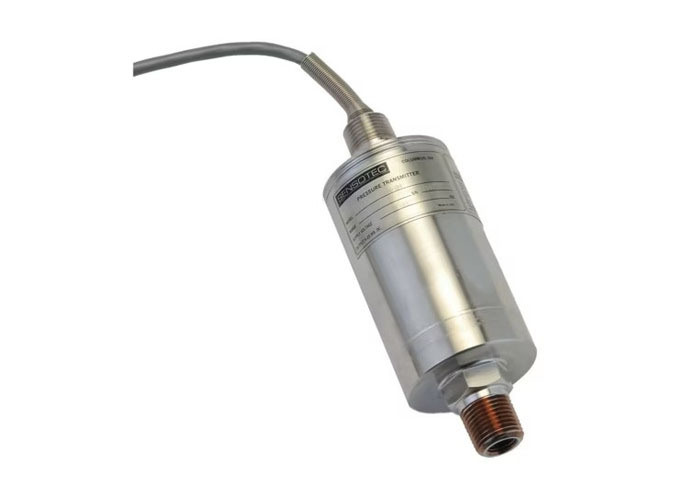

Honeywell Model 811FM PRESSURE TRANSDUCERS
Two-wire. Gage/absolute pressure transmitter. psig/a to 10,000 psig/a. 4 mA to 20 mA output. 0.25% accuracy. True gage design hermetic. Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy 0

The Model 811FM is a two-wire transmitter featuring welded stainless steel diaphragms suitable for use with liquid, gas or corrosive vapors. Manufactured from 17-4 PH stainless steel wetted material for ranges up to 2,000 psi or 15-5 PH stainless steel for ranges 2,000 psi and greater. This model features a hermetically-sealed, stainless steel case requiring no adjustment. These transducers are corrosion and shock resistant with reverse polarity protection. The 4 mA to 20 mA output enables long cable runs with high signal-to-noise ratio. Includes dual pipe thread pressure fitting for easy bulkhead mounting.

Key Features
  • 2 psig/a to 10000 psig/a range
  • Bulkhead mounting
  • All welded, stainless steel, "true gage or absolute" design
  • Explosion proof
  • 0.25% accuracy
Specifications
Industry Energy
Manufacturing Utilities
