Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

0.25% accuracy Pressure Transducer

0.5 to 60

000 psig/a range Pressure Sensor

ブランド名:

Honeywell

モデル番号:

モデルZ

連絡 ください
引金 を 求め て ください
製品詳細
ハイライト:

0.25% accuracy Pressure Transducer

,

0.5 to 60

,

000 psig/a range Pressure Sensor

支払いと送料の条件
最小注文数量
1pcs
価格
1000 Piece/Pieces per Week negotiable
パッケージの詳細
各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています
受渡し時間
5-8勤務日
支払条件
L/C、D/A、D/P、T/T、Western Union、MoneyGram
製品説明
Honeywell Model Z Pressure Transducers
General Purpose Gage/Absolute Pressure Transducers

0.5 psig/a to 60,000 psig/a. ±0.25% full-scale accuracy.

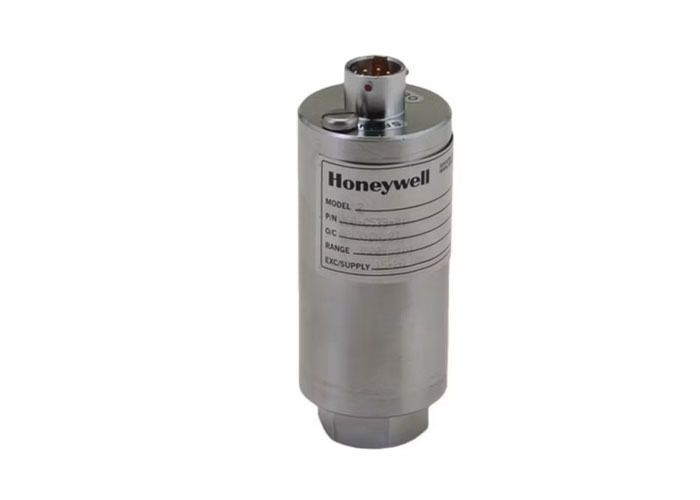

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction 0

The Model Z pressure transducers are rugged industrial sensors constructed from 17-4 PH stainless steel (wetted material for ranges up to 2,000 psi) or 15-5 PH stainless steel (wetted material for ranges 2,000 psi and greater). Designed for demanding applications requiring high accuracy and measurement stability, these transducers cover pressure ranges from 0.5 psi to 60,000 psi and utilize complete four-arm 350 ohm strain gauge bridges.

Available with multiple configuration options including extended temperature operation, various electrical terminations, wetted materials, and high-level outputs (5 Vdc, 10 Vdc, or 4 mA to 20 mA). Most high-level output models feature standard internal shunt calibration circuits for simplified sensor-to-data system setup. An optional internal signature calibration chip enables automatic configuration with the Model SC four-or-twelve channel digital indicator.

The strain gauge-based Model Z design references the primary pressure sensing diaphragm to the atmosphere, maintaining stable zero regardless of environmental conditions. The absolute version features an all-welded, vacuum reference chamber for exceptional long-term stability.

Key Features
  • 0.25% accuracy
  • 0.005%FS/°F temperature effect
  • 0.5 psig/a to 60,000 psig/a range
  • Multiple output options: mV/V, 4-20 mA, 0-5 Vdc, or 0-10 Vdc
  • All-welded, stainless steel construction
  • Intrinsically safe available (2N option only)
  • CE approved
