Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

9 Vdc to 28 Vdc Supply Voltage Wing Union Pressure Transducer

4 mA to 20 mA Output Signal Wing Union Pressure Transducer

4 mA ±0.2 %FSS Output at Null Pressure Wing Union Pressure Transducer

ブランド名:

Honeywell

証明:

ce

モデル番号:

434、435、437

連絡 ください
引金 を 求め て ください
製品詳細
供給電圧:
9 VDCから28 VDC
出力信号:
4mAから20mA
ヌル圧力での出力:
4 MA±0.2%FSS
絶縁抵抗:
20 VDCで100モーム
マックス。ループ抵抗:
950 ohm @ 28 Vは直線的に0オーム @ 9 Vに減少します
ハイライト:

9 Vdc to 28 Vdc Supply Voltage Wing Union Pressure Transducer

,

4 mA to 20 mA Output Signal Wing Union Pressure Transducer

,

4 mA ±0.2 %FSS Output at Null Pressure Wing Union Pressure Transducer

支払いと送料の条件
最小注文数量
1pcs
パッケージの詳細
各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています
受渡し時間
5-8勤務日
支払条件
L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力
交渉可能な1週間あたり1000個/ピース
製品説明
Honeywell 434, 435, 437SERIES Wing Union/Hammer Union Pressure Transducers
Product Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are engineered for demanding oil and gas applications including stimulation and circulation systems. Featuring an all-welded stainless steel construction with integrated sensor diaphragm and wing union fitting, these transducers provide superior hermetic integrity and minimize media leakage compared to multi-piece designs.

Key Differentiators
  • High or standard accuracy options for tighter system requirements
  • Shunt calibration option enhances configurability and reduces installation costs
  • IEC Ex approval for hazardous area use in multiple regions
  • Protective cage option available
  • Robust welded construction for durability
Customer Benefits
  • Durable: Weco® Wing Union-compatible fittings in Inconel® X-750 or NACE-compliant Inconel® 718 withstand abrasive and corrosive media
  • Reliable: All-welded stainless steel assembly with shock/vibration ratings and isolated pressure sensing diaphragm
  • Accurate: High accuracy option enables precise pressure measurement for operational adjustments
  • Global Support: Worldwide manufacturing and service capabilities
Applications

Acidizing, choke manifold, fracturing and cementing, measurement while drilling (MWD), mud pumps/mud logging, new well development and extraction, oil and gas drilling, service and cement trucks, standpipe, stimulation, well head measurement.

Technical Features
  • Pressure ranges: 0-20,000 psi (0-1,350 bar)
  • High accuracy ±0.1% FSS BFSL (Model 435)
  • Standard aperture (Models 434/435) and wide aperture (Model 437) pressure ports
  • Inconel® X-750 or NACE-compliant Inconel® 718 wetted parts
  • Multiple electrical connector options
  • WECO® 1502, 2002, 2202 pressure connections
  • RFI/EMI protected with CE approval
Performance Specifications
Characteristic Parameter
Pressure ranges (Models 435/437) 0-20,000 psi; 0-1,350 bar (working pressure limited to 15,000 psi/1,000 bar)
Pressure ranges (Model 434) 0-20,000 psi; 0-1,350 bar
Accuracy High accuracy: ±0.1% FSS (Model 435); Standard accuracy: ±0.2% FSS
Calibration Standard 5-point calibration; 10/20 point options available
Output 4-20 mA, two-wire
Resolution Infinite
Environmental Specifications
Characteristic Parameter
Temperature, operating -40°C to 125°C [-40°F to 257°F]
Temperature, compensating -40°C to 85°C [-40°F to 185°F]
Temperature effect, zero <±0.018% FSS/°C [0.01% FSS/°F]
Temperature effect, span <±0.018% reading/°C [0.01% reading/°F]
Temperature effect, sealing IP68 / NEMA 6P
Mechanical Specifications
Characteristic Parameter
Media Corrosive and abrasive service, Inconel® X-750 or NACE-compliant Inconel® 718
Overload, safe 150% rated full scale pressure or limit of Weco® 1502 fitting
Overload, burst 250% rated full scale pressure or limit of Weco® 1502 fitting
Pressure port Weco® 1502, 2002, and 2202 wing union, 51 mm [2 in] pipe, male sub end
Weight (approx.) 4.85 lb [2.2 kg]

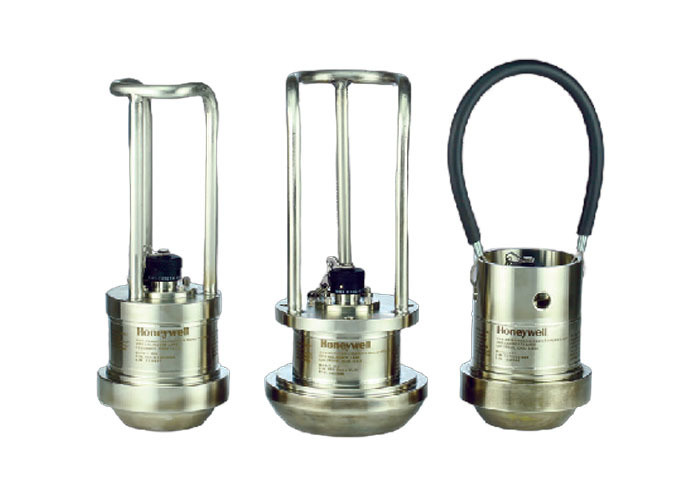

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage 0 Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage 1
