Name: KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-BG-M
Price: 5,000.00 USD
Availability: InStock

家へ > 製品 > Environmental Monitoring >

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

起源の場所:

中国

ブランド名:

KACISE

証明:

モデル番号:

KQS-BG-M

連絡ください

引金を求めてください

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

製品詳細

測定されたパラメーター:

照度、温度、湿度、CO2濃度

温度範囲:

-20～50℃(アナログ) / -40～100℃(デジタル)

湿度範囲:

0-100％RH

CO2レンジ:

0〜5000ppm

保護等級:

IP65

正確さ:

温度: ±0.3℃;湿度: ±5% RH; CO2: ±(50 ppm+5%);ライト: ±4%

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別の箱があり、すべての箱は標準パッケージまたは顧客の要求に応じて梱包されます

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

1週間あたり1000個/個交渉可能

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

最高の価格を入手する

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

最高の価格を入手する

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

最高の価格を入手する

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

最高の価格を入手する

連絡ください

今連絡してください

製品説明

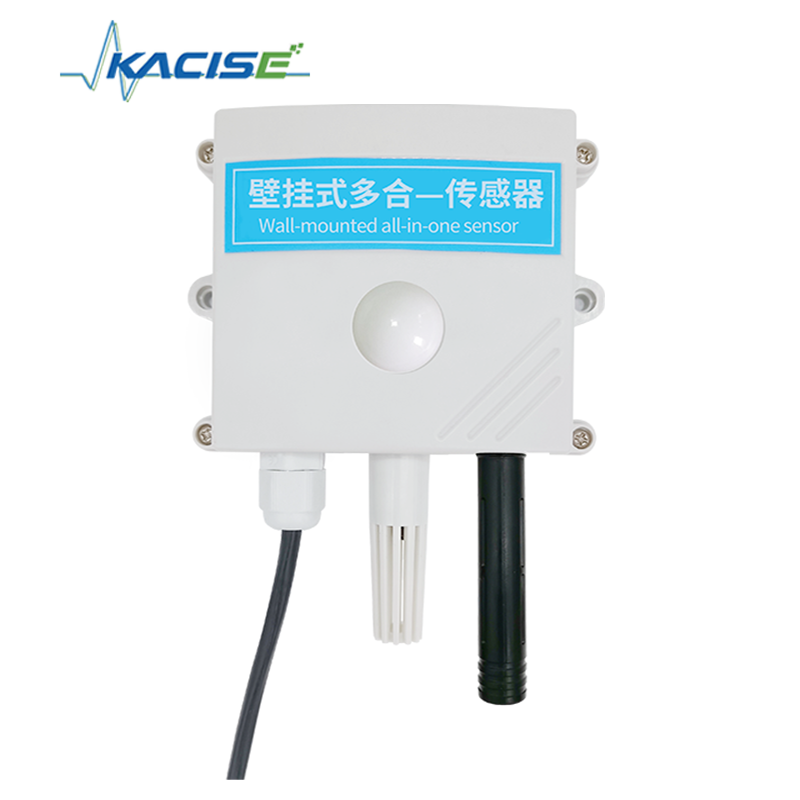

KQS-BG-M Wall-Mounted Multi-Parameter Sensor

The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.

The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.

Product Features

Factory dual calibration ensures high measurement accuracy
Secondary linear calibration provides stable and reliable data output

Technical Parameters

Item	Specification
Range	Temperature: -20-50°C (analog output) -40-100°C (digital output) Humidity: 0-100% RH CO₂: 0-5000 ppm Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy	Temperature: ±0.3°C Humidity: ±5% RH CO₂: ±(50 ppm + 5%) Light: ±4%
Resolution	Temperature: 0.1°C Humidity: 0.1% RH CO₂: 1 ppm Light: 1 Lux
Power supply	5 V or 9-30 V wide-voltage optional
Signal output	Current: □ 4-20 mA □ 0-20 mA Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
