起源の場所:
中国
ブランド名:
KACISE
証明:
CE
モデル番号:
KQS-FSFX-S

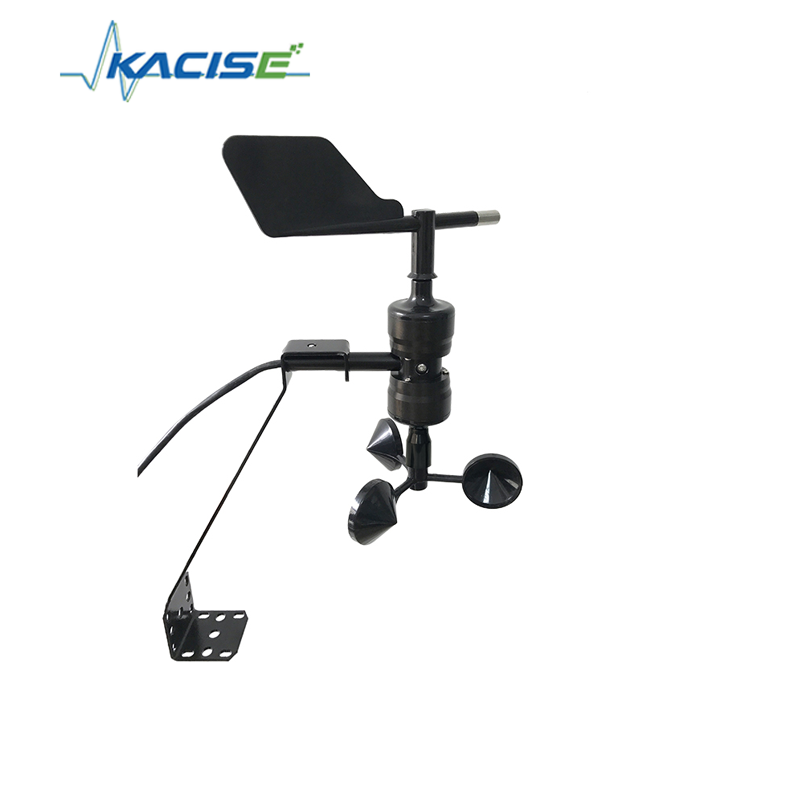

The KQS-FSFX-S is a highly integrated product combining wind speed and direction measurement. The wind speed section uses a traditional three-cup anemometer structure with imported ABS material cups for high strength and low starting threshold. The wind direction section uses a precision angle sensor with a low-inertia wind vane responding to wind direction changes.
Widely used in meteorology, marine, environment, airports, ports, laboratories, industry, agriculture, and transportation.
| Parameter | Specification |
|---|---|
| Accuracy (Wind Speed) | ±(0.3+0.03V) m/s (V = real-time wind speed) |
| Accuracy (Wind Direction) | ±3° |
| Resolution (Wind Speed) | 0.1 m/s |
| Resolution (Wind Direction) | 1° |
| Starting Wind Speed | ≤0.5 m/s |
| Max Power Consumption | 0.9W |
| Load Capacity (DC12V, current output) | ≤350Ω |
| Load Capacity (DC24V, current output) | ≤900Ω |
| Load Capacity (voltage output) | ≥1KΩ |
| Operating Temperature | -35℃～60℃ |
| Humidity | ≤100%RH, non-condensing |
| Protection Rating | IP64 |
| Net Weight | 680g |
| Package Weight | 1280g (incl. packaging and sensor cable) |
| Cable Rating | Rated Voltage: 300V, 80℃ |
| Parameter | Range |
|---|---|
| Wind Speed | □ 0～45 m/s (current/voltage output) □ 0～70 m/s (pulse/485/232 output) □ Custom |
| Wind Direction | 0-359° |
