Name: Deltabar PMD75B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: デルタバー PMD75B
Price: 152.00 USD
Availability: InStock

家へ > 製品 > 精密圧力センサー >

Deltabar PMD75B - differential pressure transmitter

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

モデル番号:

デルタバー PMD75B

連絡ください

引金を求めてください

Deltabar PMD75B - differential pressure transmitter

製品詳細

正確さ:

:最大0.075%プラチナ:最大0.055%

測定範囲:

10 mbar...40 bar(0.15 psi...600 psi)

プロセス温度:

-40°C ...+110°C（-40°F ...+230°F）

中程度の温度範囲:

-40°C...+110°C(-40°F...+230°F)

圧力測定範囲:

10 mbar...40 bar (0.15 psi...600 psi)

主要なぬらされた部品:

316L、アロイC

ハイライト:

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Deltabar PMD55B - differential pressure transmitter

最高の価格を入手する

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

最高の価格を入手する

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

最高の価格を入手する

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

最高の価格を入手する

連絡ください

今連絡してください

製品説明

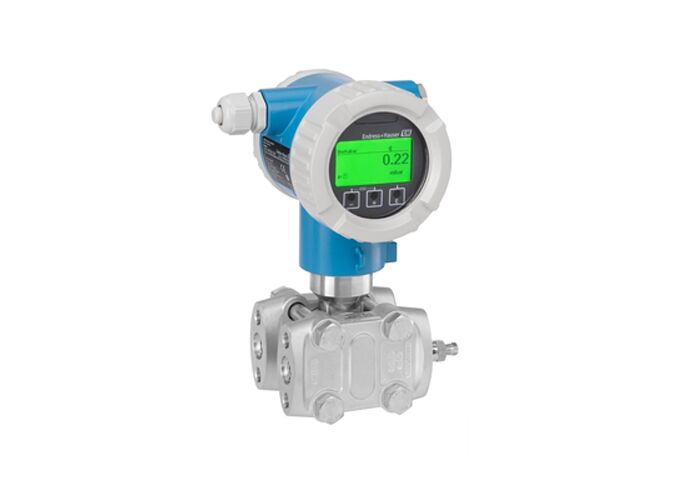

Deltabar PMD75B Differential Pressure Transmitter

The Deltabar PMD75B represents the latest generation of differential pressure transmitters, offering robust construction and intuitive operation both locally and remotely. This advanced instrument supports wireless control via mobile app using secure Bluetooth connectivity.

Key Specifications

Accuracy

Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range

10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature

-40°C...110°C (-40°F...230°F)

Pressure Range

10 mbar...40 bar (0.15 psi...600 psi)

Static Pressure

Up to 250 bar (3750 psi)

Wetted Materials

316L, AlloyC

Field of Application

This transmitter is designed for differential pressure monitoring in liquids or gases. The intuitive software includes guided wizards for setup and proof testing, minimizing operational errors and supporting condition-based maintenance to significantly improve technical service efficiency.

Key Benefits

Wireless device control in process areas using SmartBlue App without process interruption
Enhanced safety by reducing on-site accidents and protecting equipment in hard-to-reach areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Specifications

Parameter	Specification
Measuring Principle	Differential Pressure
Long Term Stability	0.05% of URL/year 0.13% of URL/5 years 0.23% of URL/10 years
Ambient Temperature	-40°C...85°C (-40°F...185°F)
Process Pressure Limit	250 bar (3750 psi)
Process Connection	NPT 1/4-18, RC1/4
Communication	4...20 mA HART, PROFINET with Ethernet-APL, Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionality for simplified integration.

Certifications & Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex
Safety: SIL
Design: EN 10204-3.1, NACE MR0175, NACE MR0103, AD2000
Drinking Water: NSF, KTW

Application Limits

None - suitable for a wide range of industrial applications.
