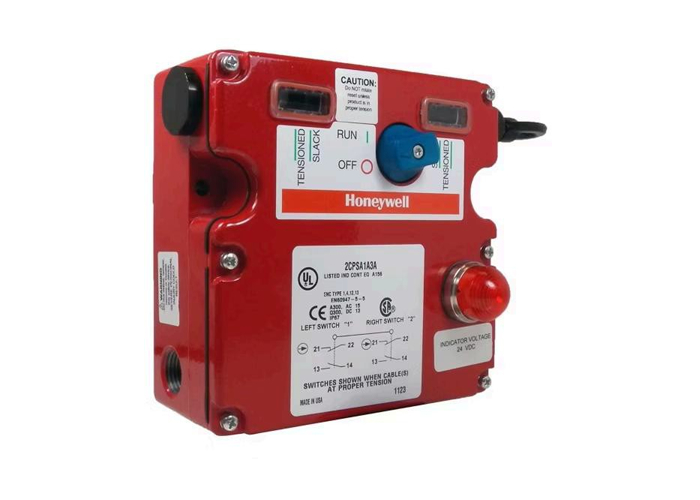

Honeywell's MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, offering a cost-effective alternative to multiple emergency stop push-buttons. The CPS Series features an internal mechanism that latches on both slackened (push) and pulled cable conditions.
The 2CPS Series is designed for long cable runs up to 152 m (500 ft), making it ideal for applications like warehouse conveyor systems. A visible line in the cable tension window indicates proper tension for easy setup.
The direct opening switch contacts remain closed when the cable is properly tensioned and the reset knob is in RUN position. Any cable pull, slackening, or breakage triggers a cam to positively open the NC (Normally Closed) contacts, which remain open until manually reset.
When the direct opening contacts open, auxiliary contacts also actuate (open contacts close). These NO (Normally Open) contacts are electrically isolated and can be used for monitoring or signaling.
| Characteristic | Parameter |
|---|---|
| Description | Cable-pull safety switches |
| Switching options | 1NO/1NC direct acting, 2NO/2NC direct acting, 1NO/3NC direct acting, 4NC direct acting |
| Sealing | IP67, NEMA 1, 4, 12, 13 |
| Contacts | Silver, gold plated over silver |
| Conduit/connectors | 1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor |
| Force to maintain Actuation shaft | 1CPS & 2CPS: 25 lb* |
| Actuation shaft operating force | 1CPS & 2CPS: 40 lb* |
| Operating temperature | -40°C to 80°C [-40°F to 176°F] |
| Storage temperature | 1CPS: -40°C to 85°C [-40°F to 185°F] |
| Mechanical endurance | 1 million operations |
| Rated thermal current (Ith) | 10 A |
| Rated impulse withstand (Uimp) | 2500 V |
| Rated insulation voltage (Ui) | 300 V |
| Useable gold-plated current | 1 mA to 50 mA, 60 Vdc max./125 Vdc max. |
| Pollution degree | 3 |
| Conditional short circuit current | 1000 A |
| Short circuit protective device (Type/maximum rating) | Class J fuse (10 A/600 V) |
| Shock | 15 g per IEC 68-2-27 |
| Vibration | 10 Hz to 500 Hz, 5 g per IEC 68-2-6 |
| Approvals | UL, CSA, CE, UKCA, SIL |
| Standards | UL Listed per File E37138 against UL508; CSA Certified per File 57323 against CSA C22.2 No. 14; CE, UKCA mark compliant with Low Voltage Directive 2014/30/EU and Machinery Directive 2006/42/EC; EN 60947-1; EN 60947-5-1; EN 60947-5-5; SIL Capability: SIL3 (HFT:1), IEC 61508-2: 2010 |
| AC | DC |
|---|---|
|
A300 Ue AC15 Ie Volts: 120, 240 Amps: 6, 3 |
Q300 Ue DC13 Ie Volts: 24, 125, 250 Amps: 2.8, 0.55, 0.27 |
Cable-pull switches with broken cable detection require proper pre-tensioning to enable RUN condition. Temperature changes affect steel cable length, which can cause nuisance shutdowns on long runs.
For optimal installation, set up the system at the midpoint of expected temperature extremes. For example, in a warehouse with temperatures ranging from 15.6°C (60°F) to 32.2°C (90°F), install at 23.9°C (75°F).
Use an endspring or additional CPS at the opposite cable end to double temperature tolerance and meet EN 418 requirements.
| Part Number | Description |
|---|---|
| 2CCPA1A1A1A | LIMIT SWITCH |
| 2CCPA1A1A2A | LIMIT SWITCH |
| 2CCPA1A1B2B-F01 | LIMIT SWITCH |
| 2CCPA1A1B2F | SAFETY SWITCH |
| 2CCPA1A1D1B | LIMIT SWITCH |
| 2CCPA1A2B1A | LIMIT SWITCH |
| 2CCPA1A2B2B | LIMIT SWITCH |
| 2CCPA1A2C1A | LIMIT SWITCH |
| 2CCPA1A2C2B | LIMIT SWITCH |
| 2CCPA1A3B1A | LIMIT SWITCH |
| 2CCPA1A3B2B | LIMIT SWITCH |
| 2CCPA1A3C1A | LIMIT SWITCH |
| 2CCPA1A3C2B | LIMIT SWITCH |
| 2CCPA1D1B2A | 2CCPAA1D1B2A |
| 2CCPA2A1B2B | LIMIT SWITCH |
| 2CCPA2A1B2D | LIMIT SWITCH |
| 2CCPA2A1C2A | LIMIT SWITCH |
| 2CCPA2A1C2B | LIMIT SWITCH |
| 2CCPA2A2B2A | LIMIT SWITCH |
| 2CCPA2A2B2B | LIMIT SWITCH |
| 2CCPA2A2B2D | LIMIT SWITCH |
| 2CCPA2A2C2A | LIMIT SWITCH |
| 2CCPA2A2C2B | LIMIT SWITCH |
| 2CCPA2A3B2A | LIMIT SWITCH |
| 2CCPA2A3B2B | LIMIT SWITCH |
| 2CCPA2A3B2D | LIMIT SWITCH |
| 2CCPA2A3C2A | LIMIT SWITCH |
| 2CCPA2A3C2B | LIMIT SWITCH |
| 2CCPB2A1A2A | LIMIT SWITCH |
| 2CCPB2A1B1A | LIMIT SWITCH |
| 2CCPB2A1B2A | LIMIT SWITCH |
| 2CCPB2A1B2B | LIMIT SWITCH |
| 2CCPB2A1C1A | LIMIT SWITCH |
| 2CCPB2A1C2A | LIMIT SWITCH |
| 2CCPB2A1D1A | LIMIT SWITCH |
| 2CCPB2A1D2A | LIMIT SWITCH |
| 2CCPB2A1D2B | LIMIT SWITCH |
| 2CCPB2A2A2A | LIMIT SWITCH |
| 2CCPB2A2B2A | LIMIT SWITCH |
| 2CCPB2A2B2B | LIMIT SWITCH |
| 2CCPB2A2D2A | LIMIT SWITCH |
| 2CCPB2A2D2B | LIMIT SWITCH |
| 2CCPB2A3A2A | LIMIT SWITCH |
| 2CCPB2A3B2A | LIMIT SWITCH |
| 2CCPB2A3B2B | LIMIT SWITCH |
| 2CCPB2A3D2A | LIMIT SWITCH |
| 2CCPB2A3D2B | LIMIT SWITCH |
| 2CPSA1A1 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A1A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA1A1B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA1A2 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A2A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side, 2NC2NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA1A2B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A3 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A3B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA1A4 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, Without Broken Cable Detection, 2NC2NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A5B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side Without Broken Cable Detection, 2NC2NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA1A6B | SAFETY LIMIT SWITCH-CABLE PULL |
| 2CPSA1B1 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 3NC1NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts |
| 2CPSA1B1B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 3NC1NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA1B2 | LIMIT SWITCH |
| 2CPSA1B2A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 3NC1NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA1B2B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side, 3NC1NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA1B3 | LIMIT SWITCH |
| 2CPSA1B3A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 3NC1NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA1B3B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 3NC1NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA2A1 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts |
| 2CPSA2A1A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA2A1B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA2A2B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Left Side, No Actuation Right Side, 2NC2NO Direct Opening (Switch 1, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA2A3A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA2A3B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Right Side, No Actuation Left Side, 2NC2NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 1NC1NO), 12 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 2CPSA2A4A | LIMIT SWITCH |
| 2CPSA2A4B | LIMIT SWITCH |
| 2CPSA2B1 | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 3NC1NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts |
| 2CPSA2B1A | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 3NC1NO Direct Opening (Switch 2, Left: 1NC1NO; Switch 2, Right: 2NC), 12 NPT, Gold-plated Contacts, 24 Vdc Multi-cluster LED |
| 2CPSA2B1B | MICRO SWITCH 2CPS Series Cable Pull Safety Switch, Cable, Maintained Both Sides, 3NC |
