ブランド名:
Honeywell
モデル番号:

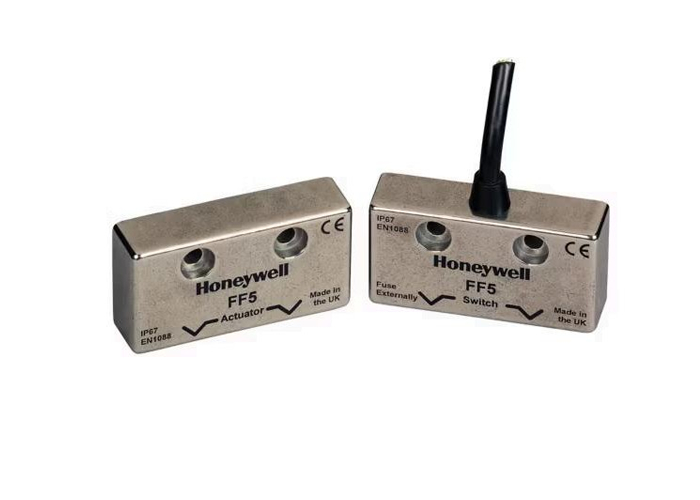

FF5シリーズ
| Characteristic | Parameter |
|---|---|
| Contact arrangements (when actuator present) | 2NC/1NO |
| Contact rating* (safety contact) | 300 mA/24 Vdc |
| Sensing distance** (safety contact) | 7 mm [0.28 in] ON/17 mm [0.67 in] OFF |
| Contact rating* (aux. contact) | 300 mA/24 Vdc |
| Sensing distance** (aux. contact) | 7 mm [0.28 in] OFF/17 mm [0.67 in] ON |
| External fuse (customer supplied) | 0.2 A fast acting |
| Operating temperature | -25°C to 55°C [-13°F to 131°F] |
| Vibration/shock | 10 g, 50 Hz to 100 Hz |
| Environmental sealing | IP67 |
| Housing material | FF5: ABS plastic FF5-SS: 316 stainless steel |
| Agency certifications | cULus/UL 508: File E37138, Industrial control CE: DOC A347 UKCA Reference standards: EN60947-5-1, EN60947-5-3, EN61000-6-2, EN61000-6-4, EN60204-1, EN62061, EN ISO 13849-1, EN ISO 13850 |
| Termination | Pre-wired six-conductor color-coded cable Ø 4.55 mm [0.18 in], 3 m or 10 m length |
| Part Number | Description |
|---|---|
| FF2-10-DC-03 | SAFETY LIMIT SWITCH |
| FF2-11-AC-03 | SAFETY LIMIT SWITCH |
| FF2-11-DC-03 | SAFETY LIMIT SWITCH |
| FF3-21-AC-03 | SAFETY LIMIT SWITCH |
| FF3-21-DC-03 | SAFETY LIMIT SWITCH |
| FF5-21-DC-03 | SAFETY LIMIT SWITCH |
| FF5-21-DC-03-SS | Non contact safety switch |
| FF5-21-DC-10 | Honeywell FF Series Safety Switch and Actuator, red ABS, 2NC1NO, dc, 10 m pre-wired |
| FF5-21-DC-10-SS | Honeywell FF Series Safety Switch and Actuator, stainless steel ABS, 2NC1NO, dc, 10 m pre-wired |
