ブランド名:
Honeywell
モデル番号:
FF6シリーズ
| Characteristic | Parameter |
|---|---|
| Certifications | cULus/UL 508; File E37138, Industrial control CE; DOC A347 UKCA Reference standards: EN60947-5-1; EN60947-5-3; EN61000-6-2; EN61000-6-4; EN60204-1; EN62061; EN ISO 13849-1; EN ISO 13850 |

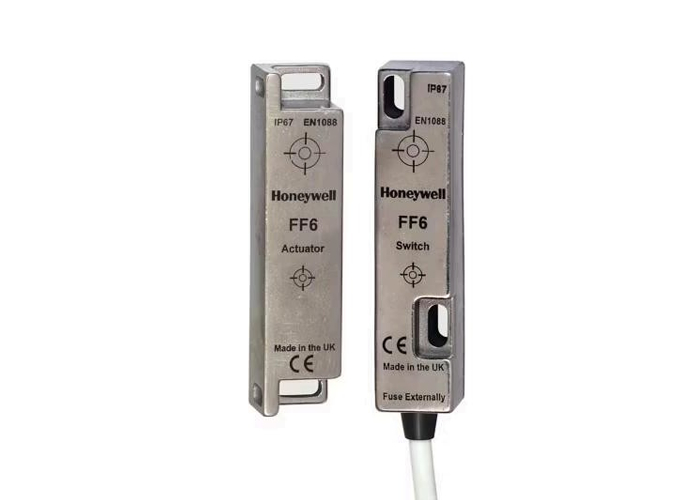

| Switch and actuator housing material | FF6: ABS plastic FF6-SS: 316 stainless steel |
| Termination | Pre-wired, color-coded cable: 3 m (9.8 ft) or 6 m (19.7ft); Male M12 quick connect with 5 m (16.4 ft) female quick connect cable |
| Contacts (when actuator present) | 1NC, 1NC/1NO, 2NC, 2NC/1NO |
| Contact design | Magnetically actuated |
| Safety contact rating | ac style: 230 Vac/2 A dc style: 24 Vdc/1 A |
| Safety contact sensing distance* | 10 mm (0.39 in) ON 28 mm (1.10 in) OFF |
| Auxiliary contact rating | 15 W/10 VA |
| Auxiliary contact sensing distance* | 11 mm (0.43 in) OFF 21 mm (0.83 in) ON |
| Internal fuse | ac: 2 A fast acting dc: 1 A fast acting |
| External fuse (customer supplied) | ac: 1.6 A fast acting dc: 0.8 A fast acting |
| Environmental sealing | IP67 for switch and actuator |
| Operating temperature | -25°C to 55°C (-13°F to 131°F) |
| Vibration | 10 g, 10 Hz to 50 Hz per IEC 60068-2-6 |
| Shock | 30 g, 11 ms per IEC 60068-2-27 |
| Catalog Listing | Description |
|---|---|
| ABS Plastic Housing | |
| FF6-10-AC-03 | FF6 Series switch and actuator, 1NC safety contact for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-AC-06 | FF6 Series switch and actuator, 1NC safety contact for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-10-AC-QD05 | FF6 Series switch and actuator, 1NC safety contact for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-10-DC-03 | FF6 Series switch and actuator, 1NC safety contact for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-DC-06 | FF6 Series switch and actuator, 1NC safety contact for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-10-DC-QD05 | FF6 Series switch and actuator, 1NC safety contact for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-11-AC-03 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-AC-06 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-11-AC-QD05 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) with integral 4-pin female connector |
| FF6-11-DC-03 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-DC-06 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-11-DC-QD05 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-20-AC-03 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-AC-06 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-20-AC-QD05 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-20-DC-03 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-06 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-QD05 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-21-AC-06 | FF6 Series switch and actuator |
| FF6-21-AC-QD05 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for ac applications, M12 male 6-pin integral connector, 5 m (16.4 ft) cable with integral 6-pin female connector |
| FF6-21-DC-03 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-21-DC-06 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-21-DC-QD05 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for ac applications, M12 male 6-pin integral connector, 5 m (16.4 ft) cable with integral 6-pin female connector |
| Stainless Steel Housing | |
| FF6-10-AC-03-SS | FF6 Series switch and actuator, 1NC safety contact for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-DC-03-SS | FF6 Series switch and actuator, 1NC safety contact for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-DC-03-SS | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-03-SS | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-21-DC-03-SS | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
