ブランド名:
Honeywell
モデル番号:
924CEシリーズ
| Characteristic | Parameter |
|---|---|
| Description | miniature safety electromechanical switch |
| Certifications | CE, UKCA, cULus, SIRA, IEC/EN60947-5-1 |
| Housing material | epoxy-coated die-cast zinc |
| Actuators | pin plunger (924CE1-) roller plunger parallel (924CE2-) roller plunger perpendicular (924CE3-) rotary (924CE16-) pin plunger with boot seal (924CE18-) adjustable plunger (924CE19-) roller plunger parallel, panel mount (924CE28-) roller plunger perpendicular, panel mount (924CE29-) roller plunger parallel with boot seal (924CE31-) roller plunger perpendicular with boot seal (924CE55-) |
| Termination (electrical connection) | 3 core or 5 core SJTO cable, Integral dc Micro connector (4-pin or 5-pin), Integral ac Micro connector (5-pin) |
| Contact options | 1NC/1NO BBM (break-before-make), 1NC/1NO MBB (make-before-break), 1NC (all normally closed contacts are positive opening) |
| Contact type | Slow action |
| Contact material | silver alloy |
| Utilization category | AC15, B300: DC13, R300 |
| Rated operational voltage (Ue) | 240 V ac or dc |
| Rated operational current | 1.5 A, 0.1 A |
| Rated thermal current (Ith) | 10 A |
| Rated insulation voltage (Ui) | 250 V |
| Rated impulse withstand voltage (Uimp) | 2500 V |
| Maximum fuse rating | 10 A |
| Environmental sealing | IP66 |
| Operating temperature | Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F] |
| MCTF (Mechanical life) | >1,000,000 cycles |
| MCTF (Electrical life) | >25,000 cycles |
| SIL Capability | Up to SIL3 (HFT1), IEC61508-2:2010 |
| Proof test interval | 1 year |
| ac | B300 | AC15 | ||||
|---|---|---|---|---|---|---|
| UE (Volts) | IE (Amps) | VA Rating | UE (Volts) | IE (Amps) | VA Rating | |
| 120 | 3 | 3600 | 360 | 125 | 0.22 | 28 |
| 240 | 1.5 | 3600 | 360 | 250 | 0.1 | 28 |
| Part Number | Description |
|---|---|
| 924CE1-S20 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-S3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-S6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-S9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-T25A | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-T3A | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-T6A | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-T9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-T9A | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-Y3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE1-Y9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE16-S12 | LIMIT SWITCH, COMPACT |
| 924CE16-S3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE16-S9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE16-T3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE16-Y3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE16-Y9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE18-S6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S15 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S21 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-S9A | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-T25 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-T6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-Y3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE2-Y9 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE3-Y3 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE3-Y6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE3-Y9P | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |

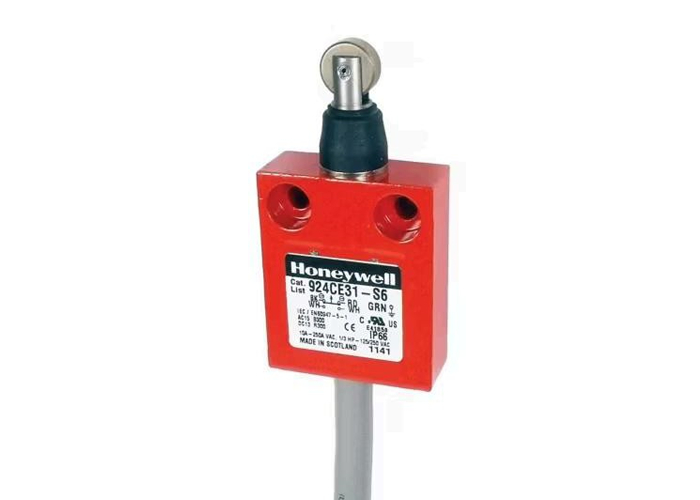

| 924CE31-S6 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE31-Y20-X5 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE31-Y3L1 | MINIATURE ENCLOSED SAFETY LIMIT SWITCH |
| 924CE55-SAQ1 | LIMIT SWITCH |
| 924CE55-SQ | SWITCH |
