ブランド名:
Honeywell
モデル番号:
AG400型

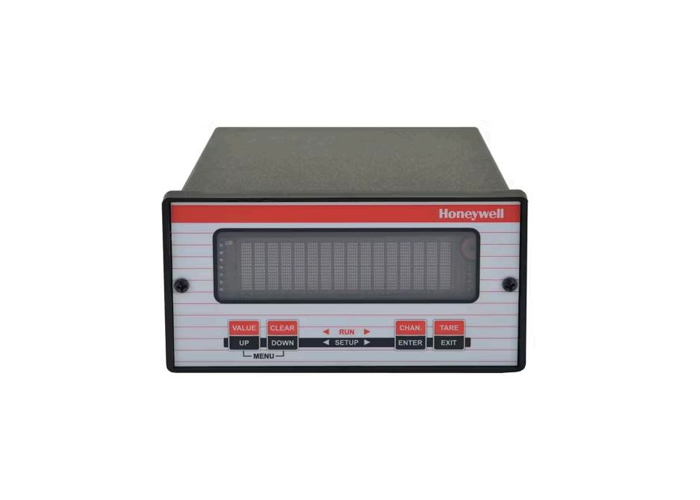

This combination pressure transducer and digital readout is designed for both industrial and laboratory applications. The Accu-Gage offers portability, enhanced accuracy, industrial-grade durability, and competitive pricing. Suitable for panel mounting, it provides clear pressure or vacuum readouts for machine operators on process lines or as on-line quality control monitors.
The AG400 model delivers exceptional accuracy (0.05% F.S.) and stability, making it ideal for Metrology and Calibration/Standards laboratories. Featuring a rugged metal case with handle, it withstands harsh industrial environments better than plastic alternatives, serving as an upgrade from precision dial gauges, mercury columns, and quartz tube barometers.
| Characteristic | Measure |
|---|---|
| Pressure ranges (AG400) | 15, 25, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000 psig/A/V |
| Pressure ranges (AG401) | 15, 25, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000, 60000 psig/A/V |
| Accuracy (AG400) | ±0.05% |
| Accuracy (AG401) | ±0.10% |
| Characteristic | Measure |
|---|---|
| Number of channels | 1 |
| Case material | Aluminum |
| Case size | 3/8 DIN |
| Characteristic | Measure |
|---|---|
| Temperature, operating | 16°C to 41°C [60°F to 105°F] |
| Temperature, effect | 0.004%/°F over operating range |
| Temperature, storage | -29°C to 93°C [-20°F to 200°F] |
| Characteristic | Measure |
|---|---|
| Number of characters | 6 |
| Scaling | Automatic or manual setup |
| Max. display count | 999,999 |
| Field selectable units | psi, bar, mbar, torr, in H2O, ft H2O, in Hg, mm Hg, MPa |
| Resolution | 1/50000 |
| Characteristic | Measure |
|---|---|
| Power requirements | 100 Vac to 230 Vac, 47 Hz to 63 Hz |
| Pressure port (15 psi to 1000 psi) | 1/4-18 NPT male |
| Pressure port (1500 psi to 10000 psi) | 1/4-18 NPT female |
| Pressure port (15000 psi to 60000 psi) | Autoclave AE F250-C |
| Range Code | Available ranges |
|---|---|
| BJ | 15 psig/A/V |
| BL | 25 psig/A/V |
| BN | 50 psig/A/V |
| BP | 75 psig/A/V |
| BR | 100 psig/A/V |
| CL | 200 psig/A/V |
| CP | 300 psig/A/V |
| CR | 500 psig/A/V |
| CT | 750 psig/A/V |
| CV | 1000 psig/A/V |
| DJ | 1500 psig/A/V |
| DL | 2000 psig/A/V |
| DN | 3000 psig/A/V |
| DR | 5000 psig/A/V |
| DT | 7500 psig/A/V |
| DV | 10000 psig/A/V |
| EJ | 15000 psig/A/V |
| ES | 60000 psig/A/V |
| Part Number | Description |
|---|---|
| 060-CS14068489626 | AE435DR, 1A, 5B:MODEL ACCU-GAGE AG400, 5, |
| 060-H265-02 | AE435BR, 1A, 5B:MODEL ACCU-GAGE AG400, |
| 060-H265-05 | AE435CR, 1A, 5B:MODEL ACCU-GAGE AG400, |
| 060-H265-14 | AE435EJ, 1A, 5U:MODEL ACCU-GAGE AG400, 15, |
| 060-H265-17 | AE435DR, 1A, 5A:MODEL ACCU-GAGE AG400, 5, |
| 060-H297-11 | AE436BL, 1A, 5B:MODEL AG-400, 25 PSIA |
| 060-H297-12 | AE436BR, 1A, 5B:MODEL ACCU-GAGE AG400, |
| 060-H297-13 | AE436BM, 1A, 5B:MODEL ACCU-GAGE AG400, 30 |
