Honeywell
モデル番号:
LM形
1 psig to 10,000 psig range with mV/V output and ±0.50% FS BFSL accuracy.

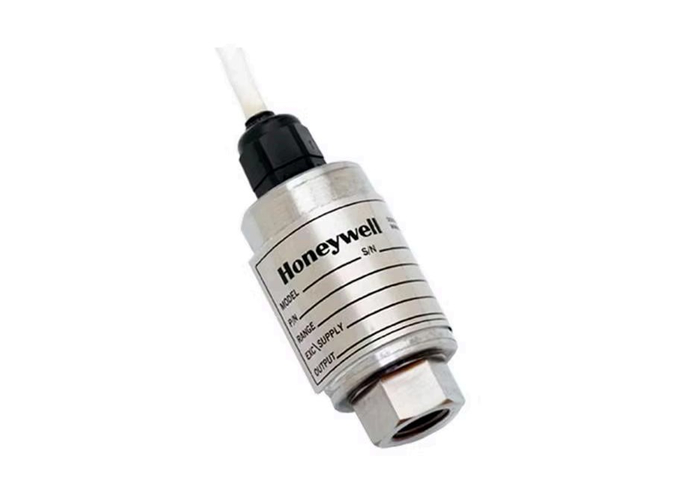

The Model LM pressure transducer is a cost-efficient, general-purpose gage-only device. Each unit is constructed with durable materials based on pressure range:
Designed for dry, rugged environments, it safely accepts both gas and liquid pressure overloads up to 50% over capacity.
| Accuracy | ±0.5% full scale |
| Temperature, operating | -54°C to 121°C [-65°F to 250°F] |
| Temperature, compensated | 16°C to 71°C [60°F to 160°F] |
| Temperature effect, zero | 0.01% full scale/°F |
| Temperature effect, span | 0.02% reading/°F |
| Excitation (calibration) | 10 Vdc |
| Excitation (acceptable) | 10 Vdc |
| Insulation resistance | 5000 mOhm @ 50 Vdc |
| Electrical termination (std) | Cable 0.91 m [3 ft] |
| Media | All gases/liquids compatible with wetted parts |
| Overload, safe | 50% over capacity |
| Pressure port | 1/4-18 NPT female |
| Wetted parts | Stainless steel |
| Weight | 170 g [6 oz] |
| Case material | Stainless steel |
| Pressure ranges | 1, 2.5, 5, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psig |
| Temperature compensation | 60°F to 160°F |
| Internal amplifiers | Unamplified, mV/V output |
| Pressure ports | 1/4-18 NPT female |
| Electrical termination | Cable 0.91 m [3 ft] |
| Special calibration | 10 point (5 up/5 down) @ 20% increments 20 point (10 up/10 down) @ 10% increments |
| Cable | Unamplified |
|---|---|
| Red | (+) Excitation |
| Black | (-) Excitation |
| Green | (-) Output |
| White | (+) Output |
| Part Number | Description |
|---|---|
| 060-2345-08 | BP211CR, 1A, 2U, 5A, 6FA:MODEL LM, 500 PSI |
| 060-2345-10 | BP211CV, 1A, 2U, 5A, 6FA:MODEL LM, 1,000 PSI |
| 060-2345-12 | BP211DN, 1A, 2U, 5A, 6FA:MODEL LM, 3,000 PSI |
| 060-2345-12-06 | MODEL LM, 3,000 PSIG |
| 060-2345-14 | BP211DR, 1A, 2U, 5A, 6FA:MODEL LM, 5,000 PSI |
| 060-2345-15-03 | BP211DT, 1A, 2U, 5A, 6FA, 9A:MODEL LM, 7,499 |
| 060-2345-15G | BP211DT, 1A, 2U, 5A, 6FA:MODEL LM, 7,500 PSI |
| 060-2345-16 | BP211DV, 1A, 2U, 5A, 6FA:MODEL LM, 10,001 |
| 060-3315-02 | BP211BR, 1A, 2U, 5A, 6A:MODEL LM, 100 PSI |
| 060-R665-01 | BP211DR, 1A, 2U, 5F, 6FA:MODEL LM 5,000 PSIG |
