KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

MEMS quartz gyroscope ±100°/s range

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Place of Origin:

CHINA

ブランド名:

KACISE

証明:

CE

Model Number:

KSGYR301M

連絡 ください
引金 を 求め て ください
製品詳細
入力電圧:
5±0.2 Vdc
Input Current:
< 50 mA
測定範囲:
±100°/s
バイアス:
≤0.03°/s
バイアス安定性:
≤20°/h
バイアス反復性:
≤20°/h
ハイライト:

MEMS quartz gyroscope ±100°/s range

,

5Vdc quartz gyroscope sensor

,

fluid level meter gyroscope sensor

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Product Overview

The KSGYR301M MEMS Quartz Gyroscope utilizes advanced quartz MEMS technology to measure angular velocities across multiple axes (configurable to customer requirements), with digital output via serial port.

Key Specifications
Attribute Value
Input Voltage 5±0.2 Vdc
Input Current < 50 mA
Measurement range ±100°/s
Bias ≤0.03°/s
Bias stability ≤20°/h
Bias repeatability ≤20°/h
Product Features
  • Mass production capability
  • Fast startup time (2 seconds)
  • Wide operating temperature range (-40°C to +65°C)
  • Low power consumption (≤50 mA)
  • High reliability design
  • Compact dimensions (22.4×22.4×9 mm)
  • Serial output (RS422)
Technical Specifications
Parameter KSGYR301M
Power Requirements
Power Voltage 5V DC
Power @ 25°C 0.3W
Supply current ≤50 mA
Performance
Range ±100°/s
Output RS422
Size 22.4mm×22.4mm×9mm
Run-up time 2s
Bias ≤0.03°/s
Bias stability ≤20°/h
Random walk ≤0.25°/√h
Scale factor nonlinearity ≤0.02%
Noise ≤0.01°/s/g
Resolution ≤0.005°/s
Bandwidth ≥90Hz
Weight ≤50g
Environmental
Operating temperature -40°C~+65°C
Random vibration 6.06g
Shock 200g
Applications
  • Airborne instrument measurement
  • Robotics systems
  • Automated testing equipment
  • Attitude reference systems
  • Control systems
  • Flight testing
  • Platform stabilization

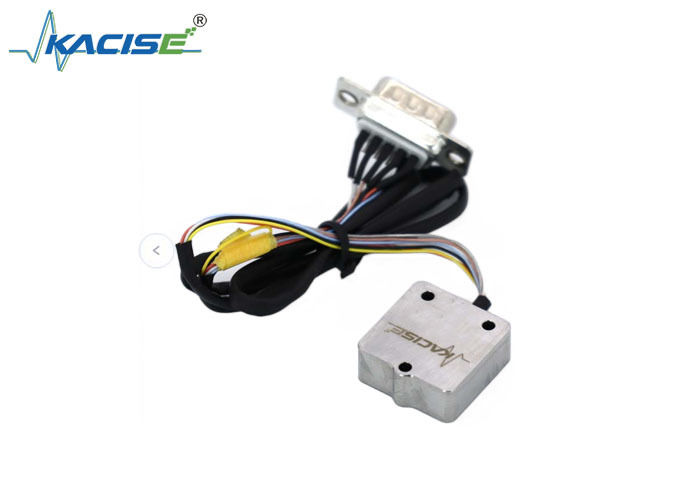

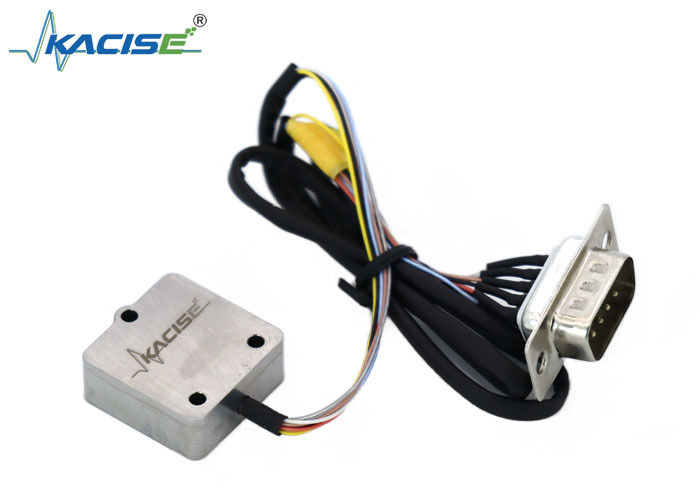

Product Image
KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc 0
Dimensions

Unit: mm

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc 1
