Place of Origin:
CHINA
ブランド名:
KACISE
証明:
CE

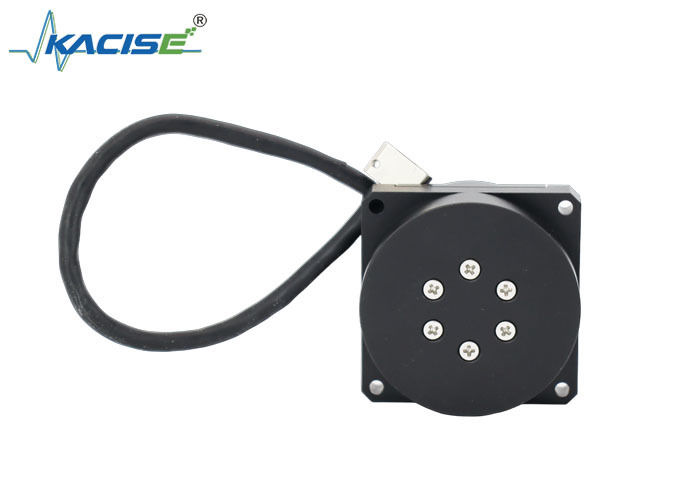

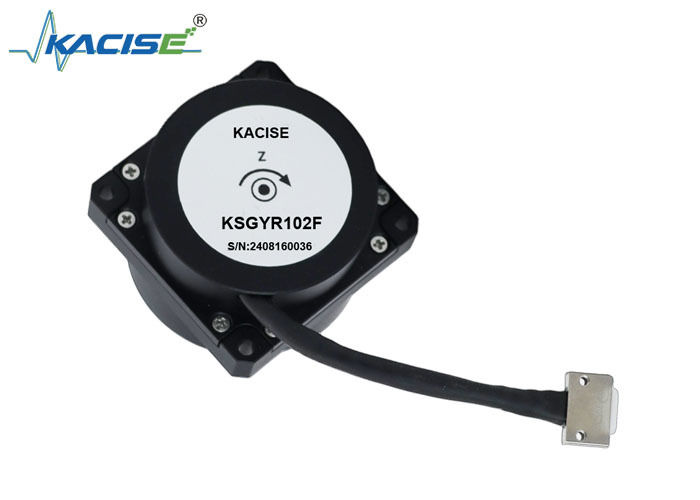

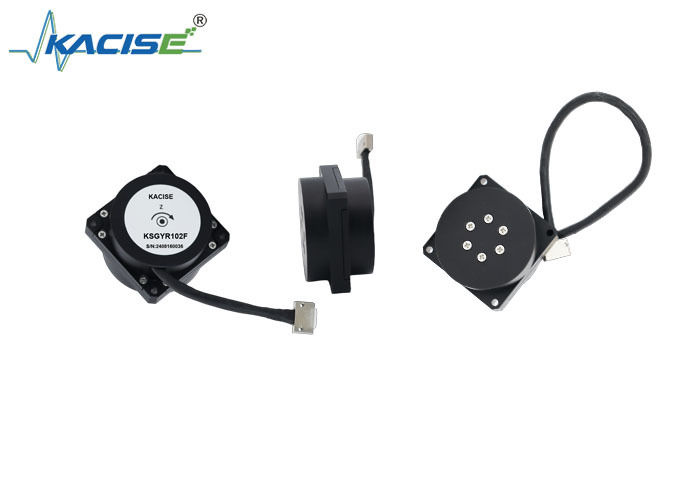

Model Number:
KSGYR102F
| Attribute | Value |
|---|---|
| Supply voltage | +5 V |
| Dimensions | 50×50×36 mm |
| Start time | 5 s |
| Bias repeatability | ≤0.05 °/h |
| Operate temperature | -45°C～+70°C |
| Parameter | KSGYR102F H | KSGYR102F L |
|---|---|---|
| Power supply parameter | ||
| Supply voltage | +5 V | +5 V |
| Product performance | ||
| Dimensions | 50×50×36 mm | 50×50×36 mm |
| Start time | 5 s | 5 s |
| Bias (10s smooth, fix temperature) | ≤0.1 °/h | ≤0.3 °/h |
| Bias stability (10s smooth -45°C~+70°C) | ≤0.3 °/h | ≤0.5 °/h |
| Bias repeatability | ≤0.05 °/h | ≤0.1 °/h |
| Random walk | ≤0.01 °/h1/2 | ≤0.02 °/h1/2 |
| Scale factor non-linearity | ≤10 ppm | ≤20 ppm |
| Scale factor repeatability | ≤10 ppm | ≤20 ppm |
| Dynamic range | ±900 °/s | ±900 °/s |
| Power dissipation (full temperature) | <4 W | <4 W |
| Weight | ＜130 g | ＜130 g |
| Environment | ||
| Operate temperature | -45°C～+70°C | -45°C～+70°C |
| Storage temperature | -50°C～+80°C | -50°C～+80°C |
問い合わせを直接私たちに送ってください.
