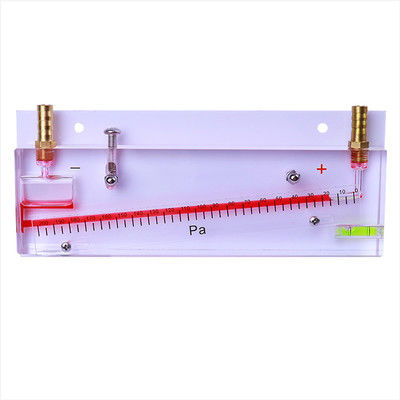

KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
Product Introduction
The KMC-DP-200 Red Oil Micro Pressure Gauge is a specialized inclined-tube manometer designed for precise measurement of positive, negative, and differential pressures in civil air defense projects, clean rooms, and fire protection systems. Engineered for micro-pressure applications, this gauge uses red oil as the working fluid to provide clear, reliable readings in critical environments such as pharmaceutical factories, laboratories, and HVAC systems.
Product Features
Application Scenarios:
Civil air defense engineering (maintaining positive pressure to prevent contaminated air ingress)
Clean room differential pressure monitoring (pharmaceutical, electronics manufacturing)
HVAC system filter pressure drop detection
Fire protection systems requiring airtightness measurement
Design Features:
Inclined tube design amplifies small pressure changes for accurate reading

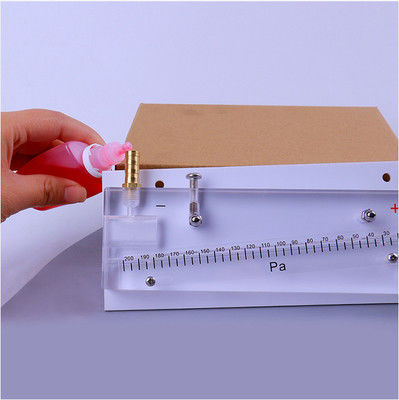

Red oil fluid for high visibility and minimal evaporation
Corrosion-resistant housing suitable for long-term use in clean environments
Technical Specifications
| Parameter | Detail |
| Model | DP-200 |
| Pressure Range | 0–200 Pa |
| Accuracy | [Specify if available, e.g., ±3% FS] |
| Working Fluid | Red oil (volatile resistance, high visibility) |
| Working Temperature | -10°C to +60°C (-14°F to 140°F) |
| Dimensions | 196mm × 84mm (height × width) |
| Process Connections | High (H) and Low (L) pressure ports for tubing attachment |
| Mounting | Wall-mounted, vertical or parallel installation |
