起源の場所:
中国
ブランド名:
KACISE
証明:
ce
モデル番号:
KSLV654-B

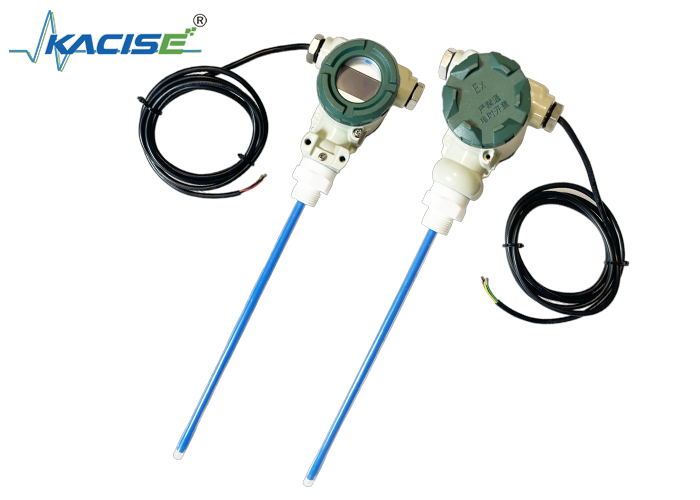

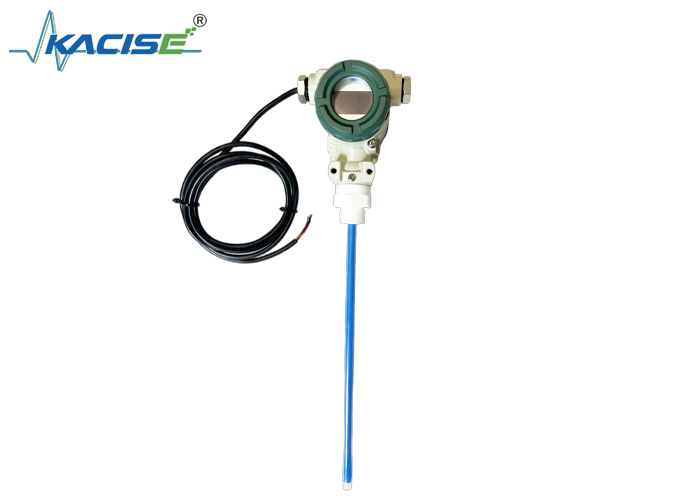

The KSLV654-B is a robust industrial capacitive level sensor designed for reliable and continuous liquid level measurement in standard industrial environments. Featuring a high-performance PFA probe and PTFE housing and screws, the sensor provides excellent corrosion resistance and durability, making it suitable for chemical, water treatment, and general industrial applications.
With support for 2-wire or 3-wire 4–20 mA output, the KSLV654-B can be easily integrated into PLC, DCS, or other automation systems, providing precise and stable level monitoring. Its wide operating temperature range, high accuracy, and compact design make it an ideal choice for versatile industrial liquid level measurement.
High-Precision Measurement
Advanced capacitive measurement technology delivers accuracy up to Class 0.5, with absolute error as low as ±3 mm, ensuring reliable and precise liquid level readings.
Wide Temperature Adaptability
Corrosion-Resistant Design
Multiple Signal Output Options

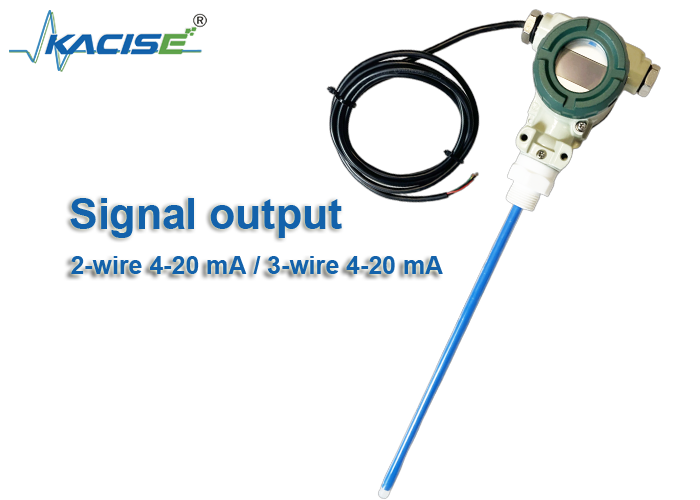

Supports 2-wire or 3-wire 4–20 mA output, allowing flexible integration with industrial control systems.
High Stability and Low Drift
Flexible Installation
Protection Against Harsh Conditions
Multiple Measuring Length Options
Measuring length: 50–2000 mm, meeting different container and tank requirements.
| Technical Parameter | Description |
|---|---|
| Order Length L | 50-2000 mm |
| Accuracy | Absolute error ±3 mm (L ≤ 300 mm), Accuracy class 1.0 (300 < L ≤ 700 mm), Accuracy class 0.5 (700 < L ≤ 2000 mm) |
| Measurement Temperature | -40 to 120℃ |
| Probe Temperature Resistance | -60 to 150℃ |
| Signal Type | 2-wire 4-20 mA / 3-wire 4-20 mA |
| Supply Voltage | 18-36 Vdc, Typical 24 Vdc |
| Pressure Range | -0.1 to 0.6 MPa |
| Long-term Stability | ≤0.1% FS / year |
| Temperature Drift | ≤0.02% FS/℃ (within -40 to 80℃) |
| Protection Level | IP65 |
| Probe Material | PFA |

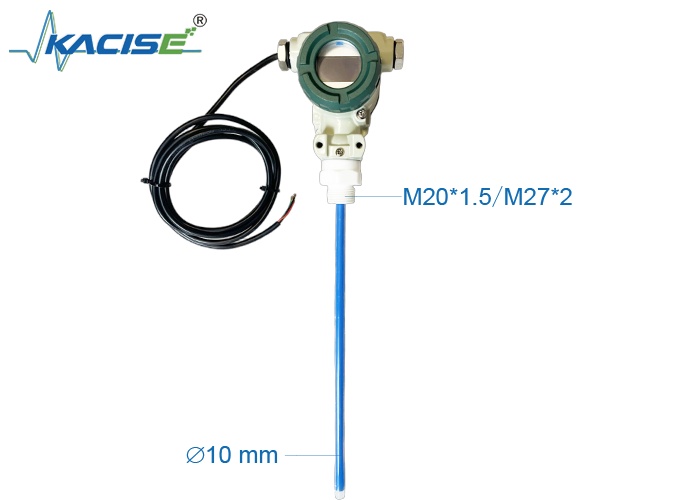

| Probe Diameter | ∅10 mm |
| Fixing Screw Material | PTFE |
| Mounting Method | Threaded M27*2 or M20*1.5 |
| Dimensional Tolerance | ±3 mm |
