起源の場所:
中国
ブランド名:
KACISE
証明:
ce
モデル番号:
KSLV653-B

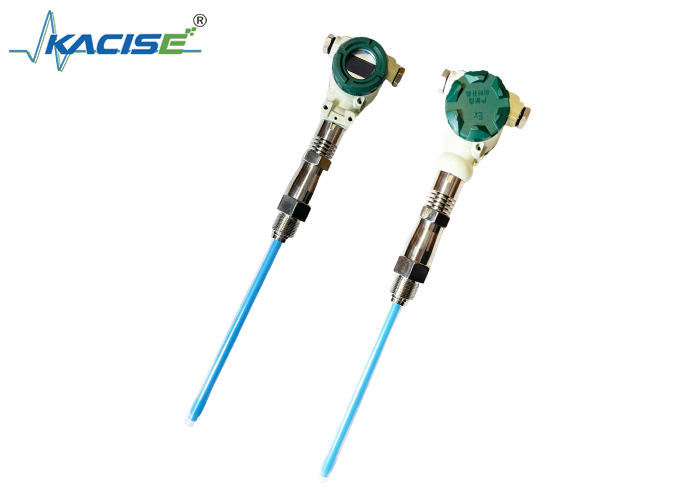

The KSLV653-B is an enhanced industrial capacitive level sensor designed specifically for low-temperature and medium-pressure industrial environments, making it suitable for continuous level measurement under complex operating conditions. Featuring a rugged industrial-grade construction, the sensor provides excellent pressure resistance and long-term stability, ensuring reliable operation even in harsh industrial environments.
The KSLV653-B adopts a high-performance FEP probe material, offering excellent corrosion resistance as well as high and low temperature tolerance. It is widely used in petrochemical, water treatment, storage tank level monitoring, and industrial automation applications. In addition, the sensor supports standard 4–20 mA industrial signal output, allowing easy integration with PLC, DCS, and other automation systems for stable and reliable level monitoring.
With wide measurement range, high accuracy, strong stability, and high pressure resistance, the KSLV653-B is an ideal solution for industrial level measurement applications.
Advanced capacitive measurement technology provides accuracy up to Class 0.5, with measurement error as low as ±3 mm, ensuring reliable and precise level monitoring.
Pressure range up to -0.1 to 4 MPa, suitable for medium-pressure storage tanks and industrial pipeline level measurement.
Medium temperature: -40 to 120°C
Probe temperature resistance: -60 to 150°C
Suitable for both low-temperature and high-temperature industrial environments.
Long-term stability: ≤0.1% FS/year
Temperature drift: ≤0.02% FS/°C
Ensures long-term reliable operation.
Reinforced structural design with IP65 protection level, suitable for harsh industrial environments.

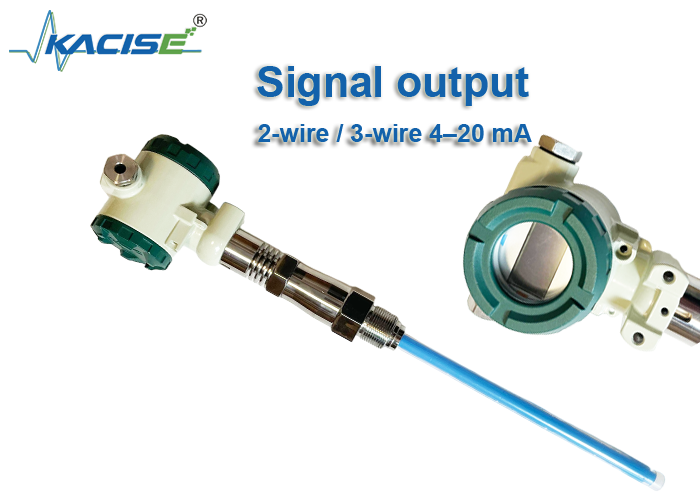

Supports 2-wire / 3-wire 4–20 mA output, compatible with various industrial automation systems.
Threaded installation M33*2, suitable for various tanks and containers, with easy installation.
Measuring length: 100–6000 mm
Meets different tank and container level measurement requirements.
| Technical Parameter | Description |
|---|---|
| Order Length L | 100-6000 mm |
| Accuracy | Absolute error ±3 mm (L ≤ 300 mm), Accuracy class 1.0 (300 < L ≤ 700 mm), Accuracy class 0.5 (700 < L ≤ 2000 mm) |
| Medium Temperature | -40 to 120℃ |
| Probe Temperature Resistance | -60 to 150℃ |
| Signal Type | 2-wire / 3-wire 4-20 mA |
| Supply Voltage | 18-36 Vdc, Typical 24 Vdc |
| Pressure Range | -0.1 to 4 MPa |
| Long-term Stability | ≤0.1% FS / year |
| Temperature Drift | ≤0.02% FS/℃ (within -40 to 80℃) |
| Protection Level | IP65 |

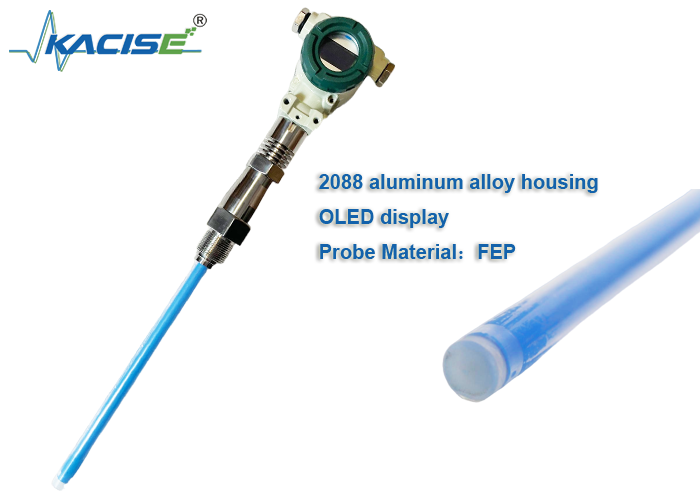

| Probe Material | FEP |
| Probe Diameter | ∅16 mm |
| Fixing Screw Material | SUS 304 |
| Mounting Method | Threaded M33*2 |
| Dimensional Tolerance | ±3 mm |
