起源の場所:
スイス
ブランド名:
Endress+Hauser
証明:
CE
| Parameter | Specification |
|---|---|

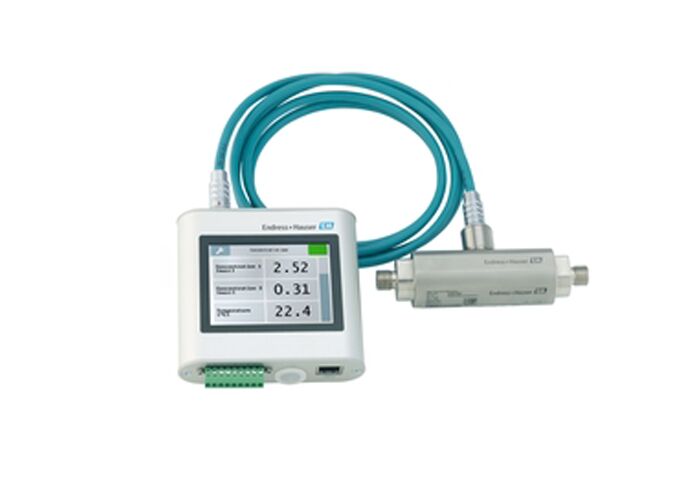

| Measuring Principle | Ultrasonic concentration |
| Nominal Diameter Range | DN 8 (1/4") to DN 25 (1") |
| Measured Variables | Concentration, sound velocity, temperature, acoustic density, dispersion |
| Max. Measurement Error | Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s |
| Measuring Range | Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³ |
| Process Conditions | Max. process pressure: 16 bar at 20°C (232 psi at 68°F) Medium temperature: 0 to 100°C (32 to 212°F) Ambient temperature: 0 to 50°C (32 to 122°F) |
| Wetted Materials | Stainless steel 1.4571 (316 Ti) |
| Housing Materials | Sensor: Stainless steel V4A 1.4571 (316 Ti) Transmitter: Anodized aluminium, Glass |
| Degree of Protection | Sensor: IP68 (with plugged-in cable) Transmitter: IP40 |
| Parameter | Specification |
|---|---|
| Display/Operation | LED status indication, TFT color touch display |
| Outputs | Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 to 10V Analog output |
| Inputs | 2 digital inputs for display and output configuration |
| Power Supply | DC 24V ±20% |
