Proline Promass S 300 Coriolis flowmeter

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

モデル番号:

プロリンプロマス S 300

連絡ください

引金を求めてください

Proline Promass S 300 Coriolis flowmeter

製品詳細

測定範囲:

0から70,000kg/h (0から2570lb/min)

マックス。プロセス圧力:

PN 40,クラス 150,20K

中程度の温度範囲:

〜50 °Cから+150 °C (〜58 °Fから+302 °F)

周囲温度範囲:

標準: -40 ～ +60 °C (-40 ～ +140 °F)

材料を収容するセンサー:

材料を収容するセンサー

材料を収容する送信機:

AlSi10Mg、コーティング;衛生的なトランスミッター設計のためのステンレス鋼

ハイライト:

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Promass S 300 Coriolis flowmeter

最高の価格を入手する

Proline Promass P 500 Coriolis flowmeter

最高の価格を入手する

Proline Promass Q 300 Coriolis flowmeter

最高の価格を入手する

Proline t-mass F 500 thermal mass flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

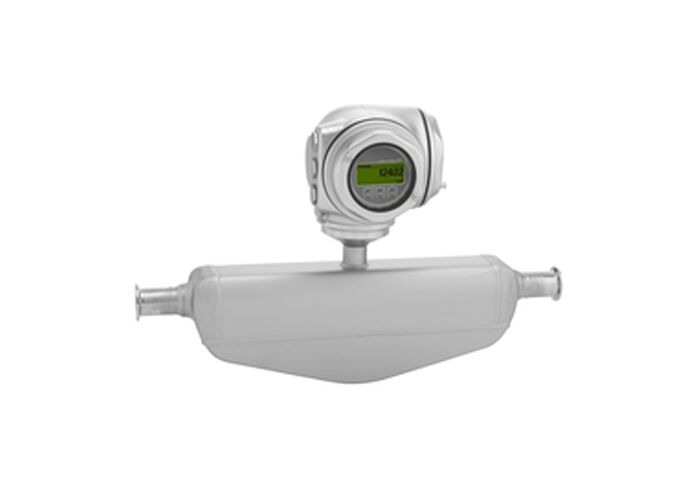

Proline Promass S 300 Coriolis Flowmeter

The Promass S 300 is a high-precision Coriolis flowmeter designed specifically for hygienic applications in the food and beverage industry. Featuring optimal cleanability and a self-drainable single-tube system, it ensures careful fluid treatment while providing exceptional measurement accuracy.

Key Specifications

Measurement Accuracy

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Temperature Range

-50 to +150 °C (-58 to +302 °F)

Max Process Pressure

PN 40, Class 150, 20K

Field of Application

The Promass S is specifically designed for hygienic applications in the food and beverage industry, offering optimal cleanability and process safety. Its compact transmitter provides high flexibility in operation and system integration.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features

Large range of hygienic process connections
3-A and EHEDG compliant
Fast recovery from CIP/SIP processes
Measuring principle operates independently of fluid properties

Transmitter Features

Compact hygienic dual-compartment housing with IP69 rating
Backlit display with touch control and WLAN access
Remote display capability
Up to 3 I/O connections

Detailed Specifications

Nominal Diameter Range	DN 8 to 50 (⅜ to 2")
Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Housing Materials	Sensor: 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; stainless steel for hygienic design
Degree of Protection	IP66/67, type 4X enclosure, IP69

Inputs & Outputs

Outputs

3 outputs including: 4-20 mA HART, 4-20 mA WirelessHART, pulse/frequency/switch output, relay output

Inputs

Status input, 4-20 mA input

Communication & Power

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE 3-A EHEDG cGMP PED CRN

Functional safety according to IEC 61508, applicable in safety-relevant applications per IEC 61511. Calibration performed on accredited facilities (ISO/IEC 17025). Heartbeat Technology complies with ISO 9001:2015 requirements for measurement traceability.
