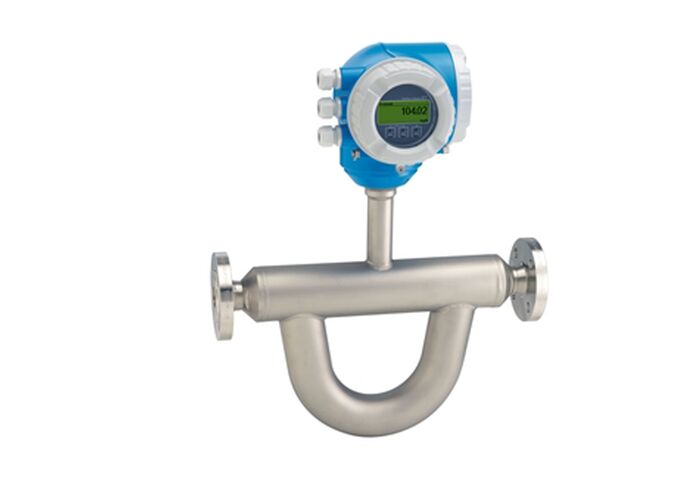

Proline Promass Q 300 Coriolis flowmeter

Proline Promass Q 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

連絡ください

引金を求めてください

Proline Promass Q 300 Coriolis flowmeter

製品詳細

測定範囲:

0 ～ 2,400,000 kg/h (0 ～ 88183 ポンド/分)

マックス。プロセス圧力:

PN 100、クラス600、63K

材料を収容するセンサー:

1.4404 (316L)、最高の耐食性

保護の程度:

IP66/67のタイプ4Xのエンクロージャ

危険区域の承認:

ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC、英国Ex、KC

製品の安全:

CE,Cマーク,EACマーク

ハイライト:

Proline Promass Q 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Promass S 300 Coriolis flowmeter

最高の価格を入手する

Proline Promass P 500 Coriolis flowmeter

最高の価格を入手する

Proline Promass Q 300 Coriolis flowmeter

最高の価格を入手する

Proline t-mass F 500 thermal mass flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

Proline Promass Q 300 Coriolis Flowmeter

The Promass Q 300 delivers the highest measurement accuracy for mass flow, volume flow, and density. Optimized for custody transfer applications and liquid applications with entrained gas, this flowmeter features a compact transmitter with flexible operation and advanced connectivity options.

Key Specifications

Maximum Measurement Error	Mass flow (liquid): ±0.10% (standard), 0.05% (option) Volume flow (liquid): ±0.10% Mass flow (gas): ±0.25% Density (liquid): ±0.2 kg/m³ (standard), ±0.1 kg/m³ (option)
Measuring Range	0 to 2,400,000 kg/h (0 to 88,183 lb/min)
Medium Temperature	Standard: -50 to +205°C (-58 to +401°F) Option: -196 to +150°C (-321 to +302°F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter Range	DN 25 to 250 (1 to 10")

Field of Application

Designed for custody transfer applications and optimized for liquid applications with entrained gas. The compact transmitter offers high flexibility in operation and system integration with single-side access, remote display, and improved connectivity options.

Key Benefits

Unmatched accuracy for mass flow, volume flow, and density measurement
Optimized performance for liquids with entrained gas using Multi-Frequency Technology
Reduced process measuring points through multivariable measurement
Space-saving installation with no inlet/outlet run requirements
Comprehensive process and diagnostic information access
Integrated verification through Heartbeat Technology

Measuring Principle

Coriolis principle operating independently of physical fluid properties such as viscosity or density.

Technical Features

Sensor Features:
• Multi-Frequency Technology for entrained gas applications
• Multivariable measurement (flow, density, temperature)
• No inlet/outlet run requirements
• Mass flow accuracy: ±0.05% (PremiumCal)
• Density accuracy: ±0.2 kg/m³
• High turndown with low pressure loss

Transmitter Features:
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display capability
• Freely configurable I/O functionality
• Heartbeat Technology for integrated verification

Materials & Construction

Wetted Materials	Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)
Sensor Housing	1.4404 (316L), highest corrosion resistance
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design

Approvals & Certifications

Hazardous Areas: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Metrological: ISO/IEC 17025, OIML R117, NTEP, MC
Marine: LR, DNV, ABS, BV, CCS
Pressure: PED, CRN, AD 2000
Material: 3.1 material, NACE MR0175/MR0103, PMI
Hygienic: 3-A, EHEDG, cGMP
