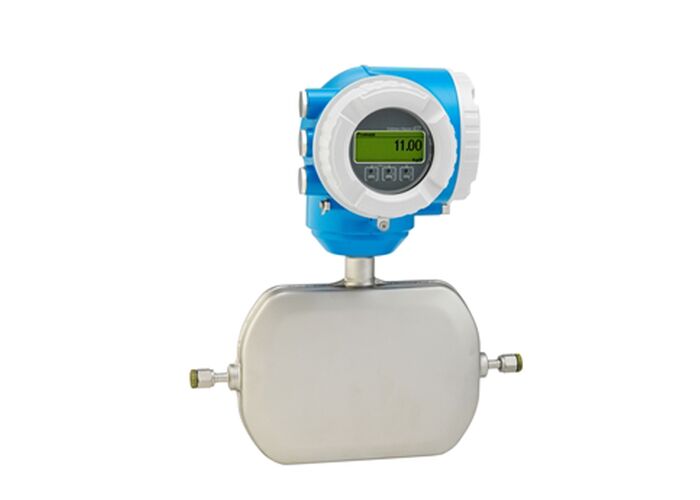

Proline Promass A 300 Coriolis flowmeter

Proline Promass A 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

モデル番号:

プロリンプロマス A 300

連絡ください

引金を求めてください

Proline Promass A 300 Coriolis flowmeter

製品詳細

測定範囲:

0 ～ 450 kg/h (0 ～ 16.54 ポンド/分)

マックス。プロセス圧力:

430.9 バール (6250 psi)

中程度の温度範囲:

-50 ～ 205 °C (-58 ～ 401 °F)

周囲温度範囲:

-40 ～ 60 °C (-40 ～ +140 °F)

材料を収容するセンサー:

ステンレス鋼、1.4404 (316L) 送信機ハウジング材質 AlSi10Mg、コーティング済み。 1.4409 (CF3M) 316L に類似。衛生的なトランスミッター設計のためのステンレス鋼

ハイライト:

Proline Promass A 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Promass S 300 Coriolis flowmeter

最高の価格を入手する

Proline Promass P 500 Coriolis flowmeter

最高の価格を入手する

Proline Promass Q 300 Coriolis flowmeter

最高の価格を入手する

Proline t-mass F 500 thermal mass flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

Proline Promass A 300 Coriolis Flowmeter

Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter. Ideal for applications with smallest flow quantities across all industries.

Field of Application

Promass A is designed for continuous process control in demanding applications. Its unique self-drainable single-tube system enables accurate measurement of liquids and gases at lowest flow rates and high pressure. The compact transmitter offers high flexibility in operation and system integration with single-side access, remote display, and improved connectivity options. Heartbeat Technology ensures measurement reliability and compliant verification.

Key Specifications

Max. Measurement Error:
Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Mass flow (gas): ±0.35%
Density (liquid): ±0.0005 g/cm³

Measuring Range:
0 to 450 kg/h (0 to 16.54 lb/min)

Medium Temperature:
-50 to 205 °C (-58 to 401 °F)

Max. Process Pressure:
430.9 bar (6250 psi)

Nominal Diameter:
DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

Wetted Materials:
Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

Key Benefits

Space-saving installation - compact, lightweight sensor
Highest product quality - self-drainable measuring tube in all line sizes
Optimum process safety - resistant to corrosive ambient conditions and internal clogging
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Features

Sensor Features

Compact, lightweight design for space-saving installation
Self-drainable measuring tube in all line sizes
Resistant to corrosive ambient conditions and internal clogging
Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
Process pressure up to 430.9 bar (6250 psi)
Medium temperature up to +205 °C (+401 °F)

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Numerous, freely combinable I/Os and fieldbuses
Freely configurable I/O functionality

Additional Specifications

Measured Variables:
Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Ambient Temperature:
-40 to 60 °C (-40 to +140 °F)

Degree of Protection:
Compact version: IP66/67, type 4X
External WLAN antenna: IP67
IP69

Display/Operation:
4-line backlit display with touch control
Configuration via local display and operating tools
Remote display available

Power Supply:
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area Approvals

ATEX IECEx cCSAus INMETRO NEPSI UK Ex

Other Certifications

CE C-TICK Functional Safety IEC 61508 ISO/IEC 17025 ISO 9001:2015 CRN 3.1 Material 3-A cGMP
