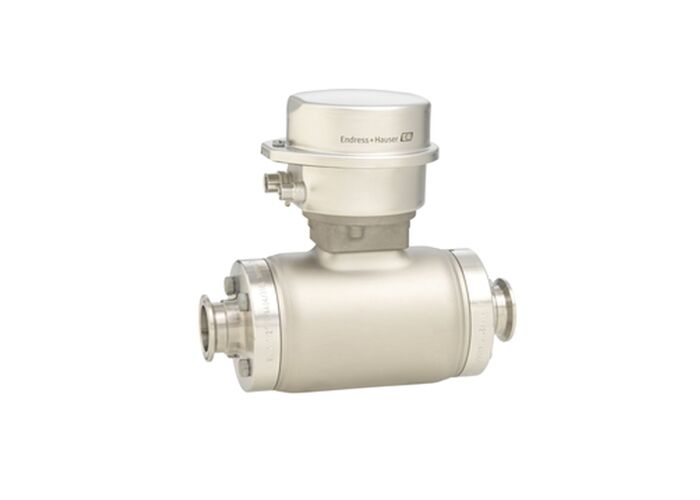

Proline Promag H 500 electromagnetic flowmeter

Proline Promag H 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter Proline Promag

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

モデル番号:

プロリンプロマーグ H 500

連絡ください

引金を求めてください

Proline Promag H 500 electromagnetic flowmeter

製品詳細

測定範囲:

0.06dm3/minから600m3/h (0.015g/minから2650g/min)

マックス。プロセス圧力:

PN 40,クラス 150,20K

中程度の温度範囲:

〜20 °Cから+150 °C (〜4 °Fから+302 °F)

周囲温度範囲:

-40 ～ +60 °C (-40 ～ +140 °F)

圧力の承認と証明書:

PED、CRN

材料証明書:

3.1 材料

ハイライト:

Proline Promag H 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter Proline Promag

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Promass S 300 Coriolis flowmeter

最高の価格を入手する

Proline Promass P 500 Coriolis flowmeter

最高の価格を入手する

Proline Promass Q 300 Coriolis flowmeter

最高の価格を入手する

Proline t-mass F 500 thermal mass flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

Proline Promag H 500 Electromagnetic Flowmeter

Specialist for hygienic applications, as remote version with up to 4 I/Os. Dedicated to demanding applications in the food and beverage as well as in life sciences industries.

Field of Application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter, Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.

Key Specifications

Maximum Measurement Error

Volume flow (standard): ±0.5% o.r. ±1 mm/s (0.04 in/s)

Volume flow (option): ±0.2% o.r. ±2 mm/s (0.08 in/s)

Measuring Range

0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min)

Medium Temperature Range

-20 to 150 °C (-4 to 302 °F)

Maximum Process Pressure

PN 40, Class 150, 20K

Nominal Diameter Range

DN 2 to 150 (¹⁄₁₂ to 6")

Wetted Materials

Component	Materials
Liner	PFA
Electrodes	1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections	Stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals	O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings	Stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Device Properties

Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP, SIP cleanable
Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69
Backlit display with touch control & WLAN access
Standard cable between sensor & transmitter

Key Benefits

Multivariable measurement for flow, temperature and conductivity
Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Details

Measured Variables

Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity

Ambient Temperature Range

-40 to 60 °C (-40 to 140 °F)

Degree of Protection

Sensor remote version (standard): IP66/67, type 4X enclosure

Sensor remote version (option): IP69

Transmitter remote version: IP66/67, Type 4X enclosure

Power Supply

DC 24 V

AC 100 to 230 V

AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals and Certifications

ATEX IECEx cCSAus CE 3-A EHEDG PED CRN IEC 61508 ISO/IEC 17025
