起源の場所:
スイス
ブランド名:
Endress+Hauser
証明:
CE
モデル番号:

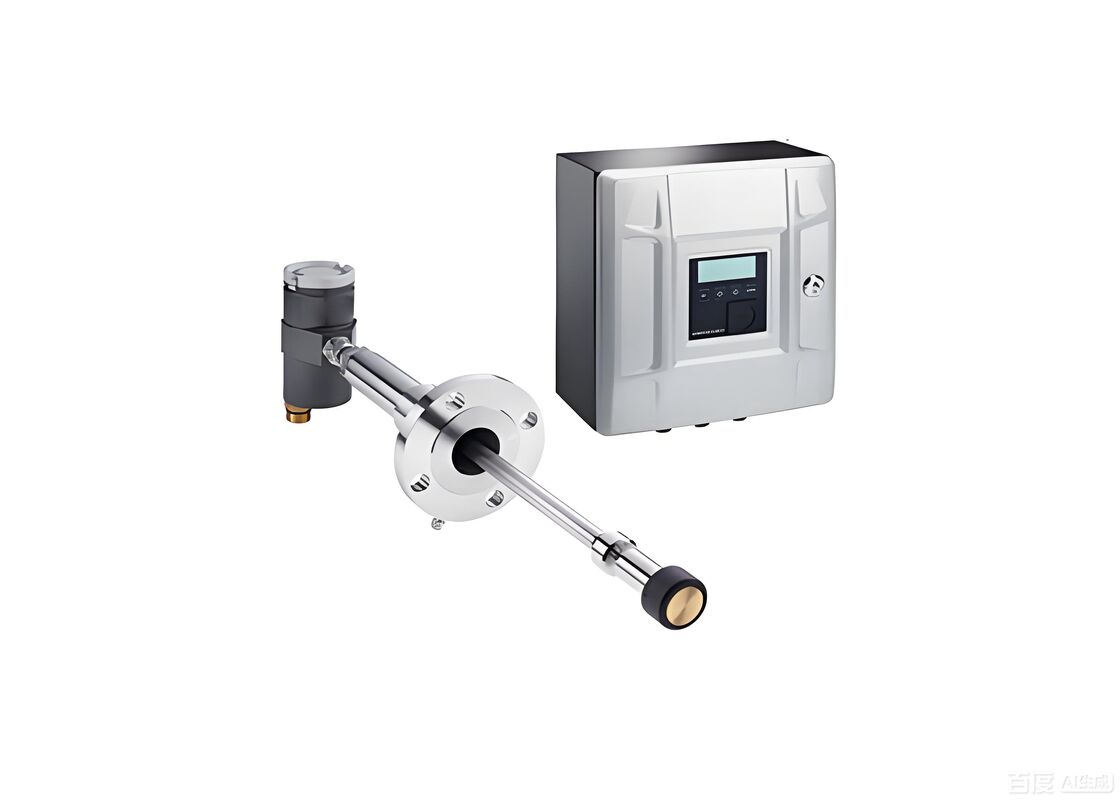

フローシック100
| Measured Variables | Mass flow rate, volumetric flow (standard condition), volumetric flow (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity |
| Measuring Range | 0.03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s) |
| Conformities | ATEX: 2014/34/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU, PED: 2014/68/EU |
| Measuring Principle | Ultrasonic transit time difference measurement |
| Max. Measurement Error |
Volumetric flow, a.c.: 1% ... 5% (≥ 0.3 m/s) Mass flow rate a.c.: 2% ... 5.5% (≥ 0.3 m/s) With spool piece and flow calibration: 0.5% ... 2% |
| Medium Temperature Range | -196 °C ... +280 °C (-320 °F ... +536 °F) |
| Operating Pressure Range | Up to 20 bar(g) depending on device flange and certification |
| Nominal Pipe Size | 1-path: 4″ ... 86″, 2-path: 12″ ... 86″ |
| Analog Outputs | Up to 6 outputs (16-bit, 4-20 mA), galvanically isolated, NAMUR NE43 compliant |
| Digital Outputs | Switching outputs (70 mA max) and frequency outputs (10 kHz max) |
| Digital Communication | HART, MODBUS, FOUNDATION FIELDBUS |
