Name: Deltabar PMD55B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: デルタバー PMD55B
Price: 152.00 USD
Availability: InStock

家へ > 製品 > 精密圧力センサー >

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

起源の場所:

スイス

ブランド名:

Endress+Hauser

モデル番号:

デルタバー PMD55B

連絡ください

引金を求めてください

Deltabar PMD55B - differential pressure transmitter

製品詳細

正確さ:

dard:最大0.05%

白金：:

0.025%まで

圧力測定範囲:

400 mbar...700 bar(1.5 psi...10,500 psi)

主要なぬらされた部品:

316L、アロイC、タンタル、モネル、PTFE、ゴールド

材料プロセス膜:

316L、アロイC、タンタル、モネル、PTFE、ゴールド

測定セル:

400 mbar...700 bar(6 psi...10,500 psi)

ハイライト:

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Deltabar PMD55B - differential pressure transmitter

最高の価格を入手する

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

最高の価格を入手する

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

最高の価格を入手する

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

最高の価格を入手する

連絡ください

今連絡してください

製品説明

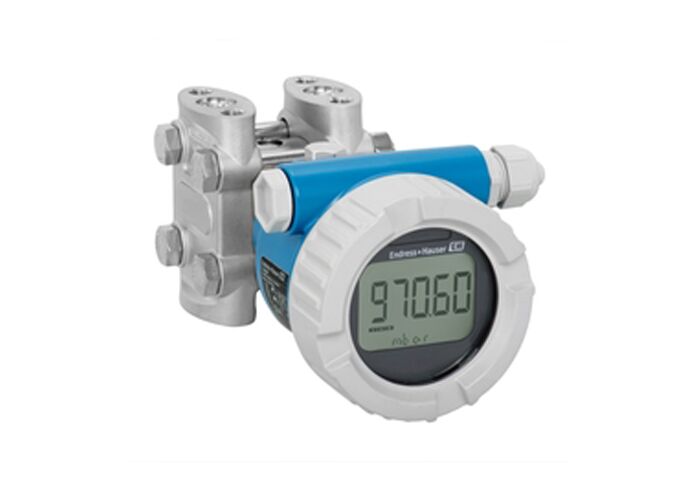

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
