起源の場所:
中国
ブランド名:
KACISE
証明:
CE
モデル番号:

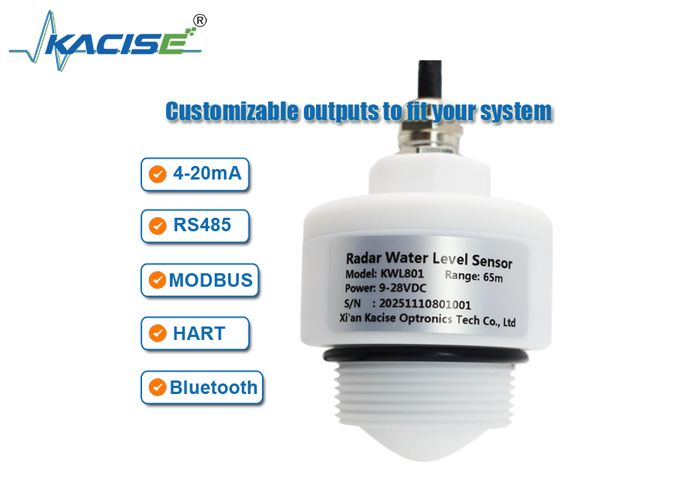

KWL801
| Model | 4-20mA Water Level Sensor | RS485 Water Level Sensor |
|---|---|---|

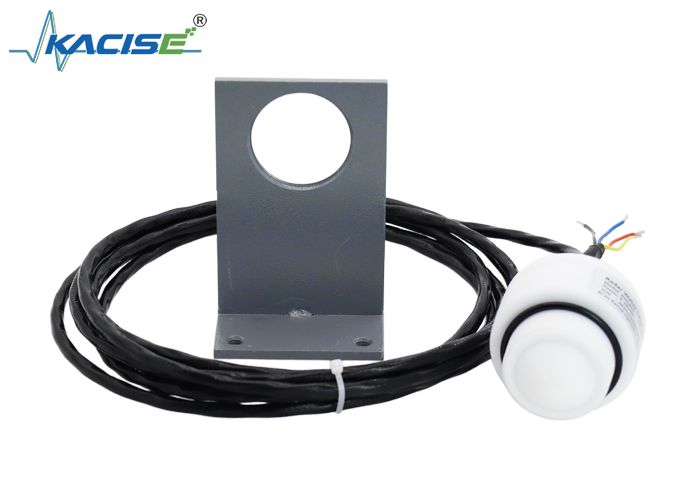

| Installation method | bracket, thread | bracket, thread |
| Frequency range | 76GHz-81GHz | 76GHz-81GHz |

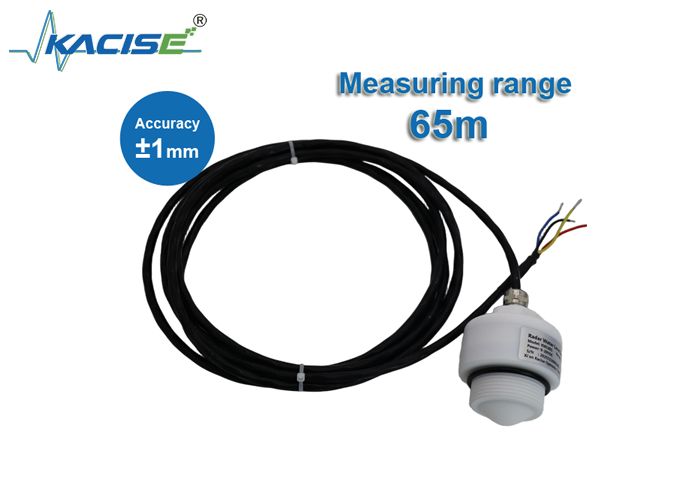

| Measuring range | 65m | 65m |
| Measurement accuracy | (±1mm) | (±1mm) |
| Communication method | 4-20mA/HART | RS485/ MODBUS |
| Power supply range | 18-28V DC | 9-28V DC |
| Cable | Cable length 10m | Cable length 10m |
| Shell material | Aluminum alloy, stainless steel, PP | stainless steel, PP |
| Process temperature | -30~70℃ | -30~70℃ |
| Process pressure | -0.1~0.1mpa | -0.1~0.1mpa |
| Measurement interval | 800ms | 500ms |
| Maximum power consumption | 4-20mA/HART(20mA) | RS485/ MODBUS (15mA) |
| Beam angle | 6° | 6° |
| Protection level | IP68 | IP68 |
| Blind area | 0.1m-12m | 0.3m-65m |
| Debug | PC Host computer/IOS Android | PC Host computer/IOS Android |
| Wireless bluetooth | Bluetooth (Optional) | Bluetooth (Optional) |
| Bluetooth range | 12m | 12m |
| Bluetooth standard | Bluetooth5.0 | Bluetooth5.0 |
| Packing size | 27*23*11 | 27*23*11 |

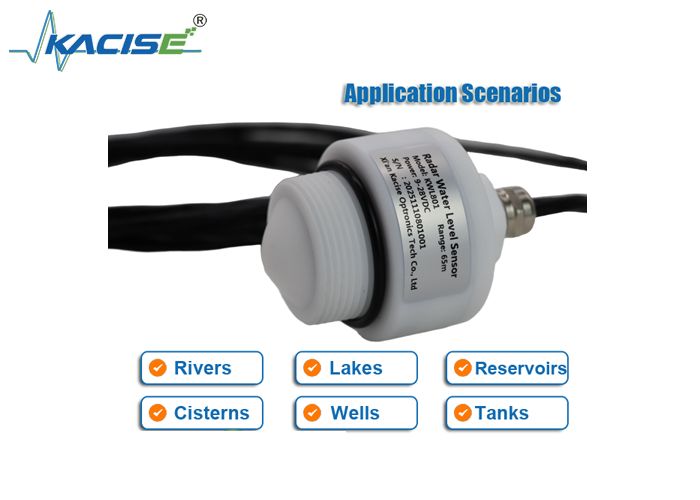

| Application scope | Rivers, lakes, reservoirs, cisterns, wells, tanks | Rivers, lakes, reservoirs, cisterns, wells, tanks |
問い合わせを直接私たちに送ってください.
