ブランド名:
Honeywell
モデル番号:
GSSシリーズ

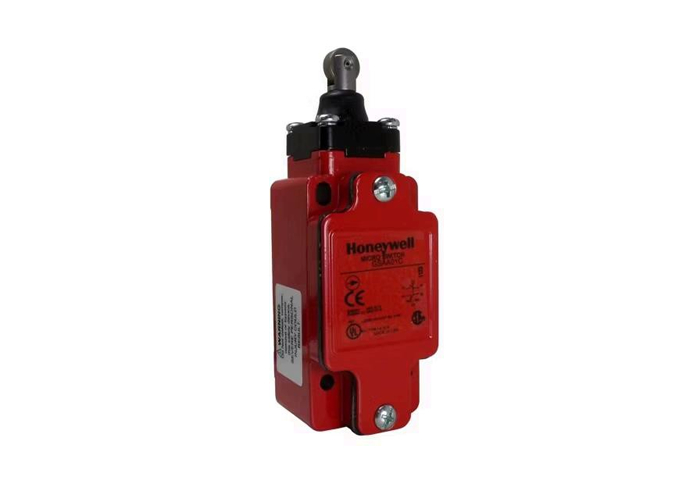

Honeywell's GSS Series electromechanical safety switches are designed to EN50041 or EN50047 standards, featuring metal or plastic housing options with UL, CSA, CE, and SIL3 certifications. These switches offer silver and gold contacts for various applications.
| Characteristic | Parameter |
|---|---|
| Description | GSA Safety Switch Series: EN50041 mounting (30 mm x 60 mm) GSC/GSD/GSE Safety Switch Series: EN50047 mounting (20 mm to 22 mm) |
| Certifications | CE; DOC # 231, EN/IEC 60947-5-1 CSA; File 57323, CSA C22.2 No. 14 UL; File E37138, UL508 |
| Housing material | GSA/GSC/GSE Series: electrostatic epoxy coated die-cast zinc GSD Series: high strength glass-filled thermoplastic |
| Actuator heads | GSA Series: Side rotary, top pin plunger, top roller plunger, top roller lever GSC/GSD/GSE Series: hinge lever positioned at left, top, or right position |
| Conduit/electrical connection | 0.5-14 NPT; 20 mm; PG 13,5; G1/2 (PF1/2) GSE Series has three (3) threaded conduits |
| Contact/switch options | GLA & GLE Series: 1NC/1NO, 2NC, 2NC/2NO, 3NC/1NO, 4NC GLC & GLD Series: 1NC/1NO, 2NC All normally closed (NC) contacts are positive opening |
| Contact material | Silver alloy (standard), gold-plated (low energy applications) |
| Rated operational voltage | 240 Vac, 600 Vac, 250 Vdc |
| Environmental sealing | GSA Series (metal body): IP67, NEMA 1, 4, 12, and 13 GSC & GSE Series (metal body): IP66, NEMA 1, 4, 12, and 13 GSD Series (plastic body): IP66/67, NEMA 1, 4X (indoor), 12, and 13 |
| Operating temperature | GSA Series with side rotary actuator head: -40°C to 85°C GSA Series without side rotary actuator head: -25°C to 85°C GSC/GSD/GSE Series: -25°C to 85°C |
| Mechanical life | GSA Series: >1,000,000 cycles GSD Series (hinge lever actuator): >1,000,000 cycles |
| SIL capability | GSA & GSD Series (hinge lever actuator); IEC 61508-2:2010; SIL2 capable with HFT=0; SIL3 capable with HFT=1 |
Ideal for safety applications in:
