ブランド名:
Yokogawa
モデル番号:
SC210G
Yokogawa has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquids or solutions.
Now, Yokogawa provides the SC450G four-wire conductivity/resistivity converter, the SC202G and SC202S two-wire conductivity/resistivity transmitters, and the SC100 panel mount conductivity converter. Yokogawa also provides many kinds of sensors for accurately measuring liquid conductivity when using converters/transmitters.
The combination of Yokogawa's converters/transmitters and sensors meets the demanding ultrapure water requirements of the growing semiconductor and pharmaceutical markets in addition to the traditional water quality measurement requirements of standard power plant and chemical applications.

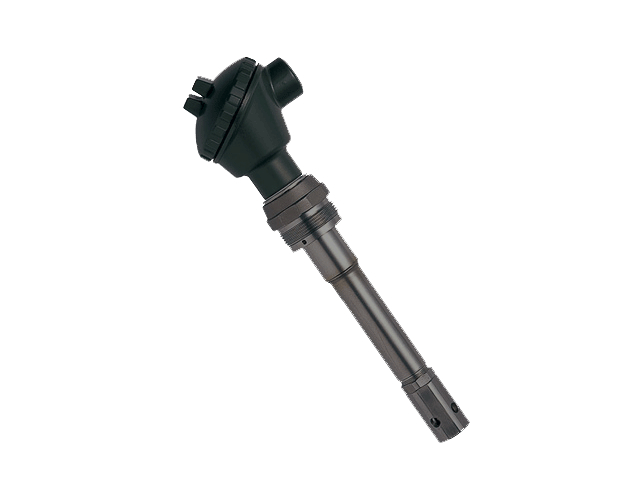

The SC210G conductivity sensor is widely used in various water and manufacturing process applications. A wide variety of mountings are available including screw-in type, flange type, flow-through type, and screw-in type with gate valve.
| Object of measurement | Conductivity of liquids or solutions |
|---|---|
| Measuring principle | Two-electrode system |
| Cell constant | 0.05 cm-1, 5 cm-1 |
| Measuring range |
0-0.5 to 0-200 μS/cm (Cell constant: 0.05 cm-1) 0-200 μS/cm to 0-20 mS/cm (Cell constant: 5 cm-1) |
| Temperature Range |
0 to 105°C (chamber material: SCS14) 0 to 100°C (chamber material: Polypropylene) |
| Pressure range |
0 to 1 MPa (chamber material: SCS14) 0 to 500 kPa (chamber material: Polypropylene) |
| Measuring solution condition |
Flow rate: less than 20 l/min is recommended for flow-through type. Air bubbles should not be mixed in the sample solutions to obtain correct measured values. |
| Temperature sensor | PB36 NTC |
| Construction | JIS C0920 watertight (equivalent to NEMA4) |
| Process connection | Screw-in, Flange, Flow-through, with gate valve |
