ブランド名:
Yokogawa
モデル番号:

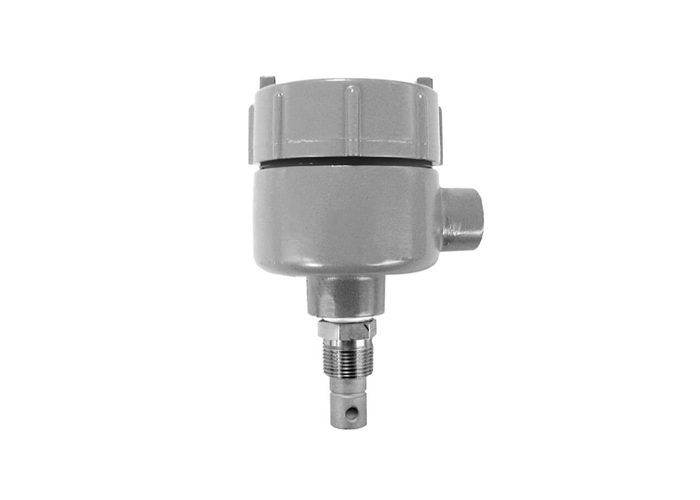

センサーSC42/SX42
| Specification | SC42 Small Bore | SX42 Large Bore | SX42 Large Bore (Flanged) |
|---|---|---|---|
| Model Code | SC42 Small Bore | SX42 Large Bore | SX42 Large Bore |
| Cell Constants | 0.1/cm; 1.0/cm | 0.1/cm; 1.0/cm | 0.1/cm; 1.0/cm |
| Ranges | 0.4-2,000 µS/cm; 4.0-5,000 µ/cm | 0.02-2,000 µS/cm; 0.2-20,000 µS/cm | 0.02-2,000 µS/cm; 0.2-20,000 µS/cm |
| Temperature Element | Pt1000 | Pt1000 | Pt1000 |
| Pressure Rating | 7 bar/100 PSIG | 16 bar/228 PSIG | 40 bar/570 PSIG |
| Maximum Temperature | 100°C/212°F | up to 200°C | up to 250°C |
| Installation Connections | 3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp | 1" NPT | 2" 600lb ANSI Flange |
| Integral Cable | NO | NO | NO |
| Materials Of Construction | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| Design Style | 2-Electrode | 2-Electrode | 2-Electrode |
