Name: PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: PH21
Price: 5,000.00 USD
Availability: InStock

家へ > 製品 > 水質センサー >

PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments

Integral Pt1000 pH Sensor

0-14 pH Range Water Quality Sensor

0-60°C Temperature Range PH21 Sensor

ブランド名:

Yokogawa

モデル番号:

PH21

連絡ください

引金を求めてください

PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments

製品詳細

センサーボディ:

PPS

測定センサー:

Gグラス

Oリング:

ヴィトン

参照ジャンクション：:

PTFE

ハイライト:

Integral Pt1000 pH Sensor

0-14 pH Range Water Quality Sensor

0-60°C Temperature Range PH21 Sensor

支払いと送料の条件

最小注文数量

1pcs

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5-8勤務日

支払条件

L/C、D/A、D/P、T/T、Western Union、MoneyGram

供給の能力

交渉可能な1週間あたり1000個/ピース

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

最高の価格を入手する

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

最高の価格を入手する

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

最高の価格を入手する

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

最高の価格を入手する

連絡ください

86--17719566736

今連絡してください

製品説明

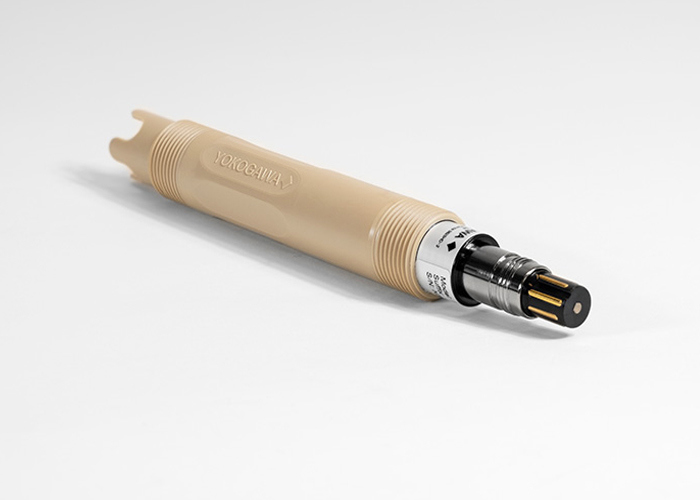

Wide Body Sensor for Water and Wastewater PH21

At Yokogawa, we are committed to our responsibility of protecting the environment. The PH21 represents a significant step toward achieving a zero-emission future as the first pH sensor made from recycled PPS-GF40 materials without compromising sensor body integrity. Designed specifically for the drinking water market, the PH21 combines simplicity with accuracy to deliver reliable pH measurements, making it an excellent choice for 80% of water-based applications.

Features and Benefits

Available as analog and digital SMART sensors (SENCOM)
Integral Pt1000 element for accurate temperature measurements and enhanced pH accuracy
Quick disconnect Variopin connector
Simple maintenance through comprehensive design
Versatile installation options: Direct in-line, immersion, off-line (flow fitting), and retractable Hot-tap
Quick-Release adapter available
Calibration certificate included with each sensor

Measuring Elements

pH glass electrode

Silver Chloride reference

Pt1000 temp sensor

Wetted Parts

Component	Material
Sensor body	PPS
Measuring sensor	G-Glass
O-ring	Viton
Reference junction	PTFE

Functional Specifications (at 25°C)

Parameter	Specification
Isothermal point	pH7
Reference system	Ag/AgCl
Glass impedance	100-3000 MΩ
Junction resistance	< 1 KΩ
Temperature element	Pt1000 IEC 751
Asymmetry potential	< 5 mV
Linearity pH Slope	≥96% in pH 2 - 12

Dynamic Specifications (at 25°C)

Parameter	Specification
Response time pH step 7 to 4	15 sec for 90%
Response time temp step, 10°C	180 sec
Stabilization time (0.02 pH unit 10 s)	< 2 minutes

Operating Range

Parameter	Range
pH	0 - 14 pH
Temperature	0°C... +60°C (32°F... 140°F)
Pressure (at 25°C)	0 to 5 Bar (0 to 72 PSIG)
Pressure (at 70°C)	0 to 5 Bar (0 to 72 PSIG)
Conductivity	> 50 µS/cm
