ブランド名:
Honeywell
証明:
ce
モデル番号:

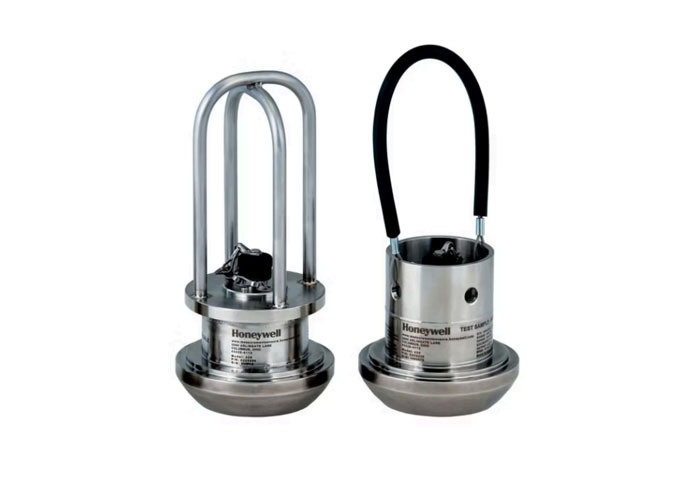

モデル425
| Category | Item | Details |
|---|---|---|
| Pressure Range | Pressure Range | 0 psi to 5000 psi; 0 psi to 6000 psi; 0 bar to 350 bar; 0 bar to 10000 psi; 0 bar to 700 bar; 0 bar to 15000 psi; 0 bar to 10000 bar, etc. |
| Accuracy | ±0.1% of Best Fit Line (BFL); ±0.2% of Best Fit Line (BFL), 5-point calibration at 50% and 100% Full Scale (FS) | |
| Calibration | 5-point calibration | 2-line full scale |
| Output | 4mA to 20mA | |
| Environment | Operating Temperature | -43℃ to 93℃ (-45℉ to 200℉) |
| Compensation Temperature | -34℃ to 82℃ (-30℉ to 180℉) | |
| Temperature Effect - Zero | 0.018 % of Reading/℃ (0.01% of Full Scale/℉) | |
| Temperature Effect - Span | 0.018 % of Reading/℃ (0.01% of Full Scale/℉) | |
| Sealing | Hermetic IP68/NEMA 6P | |
| Electrical | Supply Voltage: 9 Vdc to 28 Vdc Insulation Resistance: > 1000 mΩ at 50 Vdc Maximum Loop Resistance: 950 Ω (at 28V), reduced to 0 Ω (at 9V) Circuit Protection: Reverse polarity protection for power supply summary RFI/EMI Protection: Noise immunity from 5000Hz to 1GHz Frequency Response: Frequency response from 10Hz up to 2500Hz max; customer-specified and factory-installed filters are used to minimize (interference) Zero & Span Adjustable: Field adjustable by removing the connector Loop Calibration Data: Included Air Terminal (Standard): NIS-3102E-14S-2P, equivalent to 4-pin hermetic stainless steel |
|
| Internal Amplifier | Amplifier Specs | Intrinsically safe large type: Option 2n (2N)*** |
| Output Signal | 4mA to 20mA | |
| Input Power (Voltage) | 9 Vdc to 28 Vdc | |
| Input Power (Current) | 4mA to 24mA | |
| Frequency Response (Amplifier) | 2500Hz | |
| Power Supply Rejection | 60db | |
| Operating Temperature | -43℃ to 93℃ (-45℉ to 200℉) | |
| Mechanical | Overload, Safety | 300% of rated pressure or 1502 force class (limit of 1502 fittings) |
| Pressure Port | 1502 Wing Union, 5.1mm [2in] pipe, exposed threads | |
| Wetted Material | Inconel X-750 | |
| Weight | 2222 g [6 lb] | |
| Housing Material | 316L (stainless steel with welded and molded engraved symbol labels) |
