起源の場所:
中国
ブランド名:
KACISE
証明:
CE
モデル番号:
KTS100
| Attribute | Value |
|---|---|
| Measurement Range | -55～1200℃ |
| Accuracy | ±0.5%(typical) ±1%(Max.) |
| Long term stability | ±1.0%F.S/year |
| Power supply | 15～30VDC |
| Output signal | 4～20mA 0/1～5/10VDC |
| Pressure port | M27×2 or customize |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Cable | Polyethylene |
| Protection | IP65 |

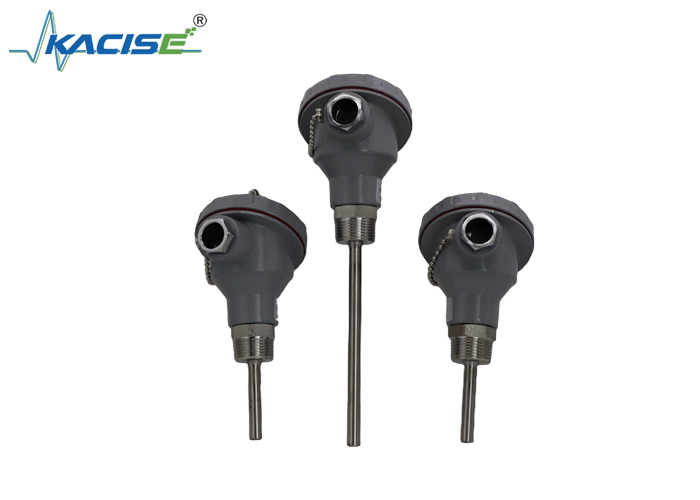

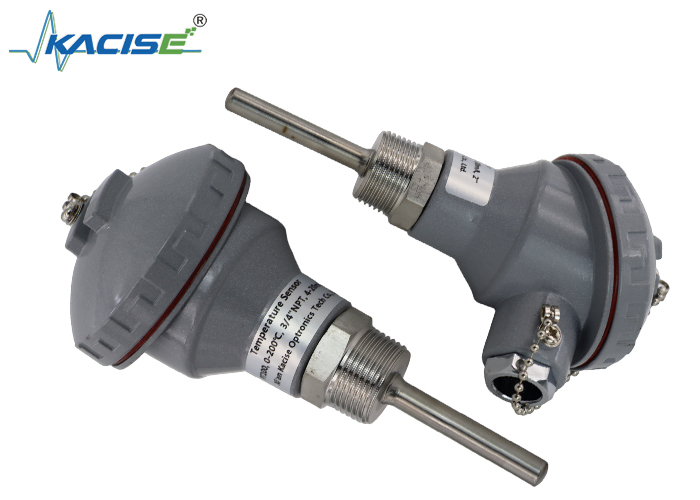

The KTS100 temperature transmitter utilizes a specialized temperature module to perform linearity correction for most thermocouple and thermal resistance types, outputting a standard analog signal with high reliability and stability.
| Parameter | Specification |
|---|---|
| Measurement Range | -55～1200℃ |
| Accuracy | ±0.5%(typical) ±1%(Max.) |
| Long term stability | ±1.0%F.S/year |
| Power supply | 15～30VDC |
| Output signal | 4～20mA 0/1～5/10VDC |
| Pressure port | M27×2 or customize |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Cable | Polyethylene |
| Protection | IP65 |
問い合わせを直接私たちに送ってください.
