起源の場所:
中国
ブランド名:
KACISE
証明:
CE
モデル番号:
KSINS003C

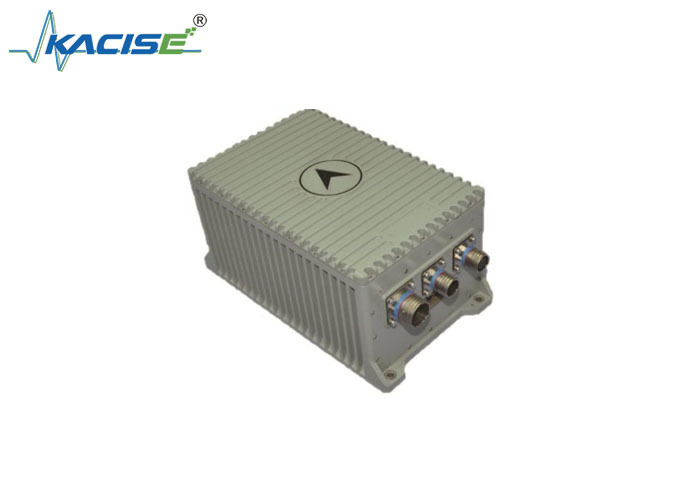

The KSINS003C fiber optic gyroscope strapdown navigation system is built on a universal fiber optic inertial navigation platform. Designed with adaptability in mind, it offers short development cycles, high maturity, and excellent reliability. All components including gyroscopes, accelerometers, and circuits are sourced from existing, proven shelf products.
| Attribute | Value |
|---|---|
| Power Voltage | 18~32VDC |
| Power Consumption | <20W |
| Position Accuracy | <0.05%D; <0.5nmile/h |
| Attitude Accuracy | <0.02° |
| Heading Accuracy | <1mil |
| Power Supply Parameters | |
|---|---|
| Power Voltage | 18~32VDC |
| Power Consumption | <20W |
| Navigation Performance | |
| Position Accuracy | <0.05%D; <0.5nmile/h |
| Attitude Accuracy | <0.02° |
| Heading Accuracy | <1mil |
| Circular Error Probable (CEP) | <0.1m |
| Velocity Accuracy | <1m/s |
| Alignment Time | <5min |
| Gyroscope Specifications | |
| Bias stability | ≤ 0.01°/h; ≤ 100μg |
| Bias repeatability | ≤ 0.01°/h; ≤ 50μg |
| Scale factor temperature sensitivity | 30ppm; 50ppm |
| Random walk | ≤ 0.001°/√h |
| Accelerometer Specifications | |
| Bias stability | ≤ 100μg |
| Bias repeatability | ≤ 50μg |
| Scale factor repeatability | 50ppm |
| Scale factor temperature sensitivity | 50ppm |
| Environmental Specifications | |
| Operating temperature | -40~+65°C |
| Random vibration | GJB150.16A-2009.C.3 |
| Shock resistance | 30g, 11ms |
| Physical Specifications | |
| Output interfaces | RS-422/RS-232 × 2; Ethernet; Built-in satellite receiver; Odometer; Altimeter; Speedometer |
| Dimensions | 230×150×140mm |
| Weight | <6kg |
