KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power

KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power

quartz flexible accelerometer 10g range

quartz accelerometer fluid level meter

flexible accelerometer with warranty

Place of Origin:

CHINA

ブランド名:

KACISE

証明:

CE

Model Number:

KSACC117Q

連絡 ください
引金 を 求め て ください
製品詳細
パワー電圧:
±12~±18V DC
入力範囲:
±10g
バイアス:
≤10mg
温度感度:
≤100μg/°C
3時間の安定性 ((1σ):
≤100μg
スケールファクター:
2.3~3.5mA/g
ハイライト:

quartz flexible accelerometer 10g range

,

quartz accelerometer fluid level meter

,

flexible accelerometer with warranty

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明
KSACC117Q Quartz Flexible Accelerometer ±10g Range
Product Attributes
Attribute Value
Power Voltage ±12~±18V DC
Input Range ±10g
Bias ≤10mg
Temperature Sensitivity ≤100μg/°C
Three-hour Stability(1σ) ≤100μg
Scale Factor 2.3 ~ 3.5mA/g
Product Description
KSACC117Q Quartz Flexible Accelerometer

Quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Our quartz flexible accelerometer product line ranges from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers. These instruments are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features
  • Excellent index repeatability
  • Analog output
  • Wide temperature range
  • Wide load resistance range
  • Compact size and light weight
  • Shock and vibration resistant
  • High temperature resistant
Applications
  • Inertial monitoring systems
  • Inertial navigation systems
  • Flight control systems
  • Vibration monitoring
  • Oil drilling platforms and geological exploration
  • Inertial measurement units
  • Motion monitoring equipment

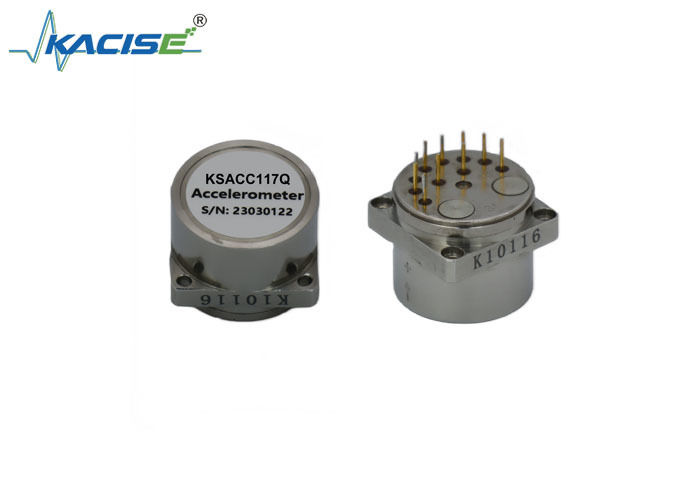

KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power 0
Technical Specifications
Power Supply Parameters
Power Voltage 12~18VDC
Power at 25°C 90mW
Supply current 6mA
Product Performance
Range ±10g
Size Ø25×25
Bias <10mg
Bias stability ≤10ug
Bias temperature sensitivity 100ug/°C
Bias repeatability ≤60ug
Scale factor 2.3~3.5mA/g
Scale factor temperature sensitivity 100ppm/°C
Second order nonlinear coefficient ≤60μg/g²
Second order nonlinearity coefficient repeatability ≤30μg/g²
Scale factor repeatability 100ppm
Noise <5μg
Threshold <5 μg
Bandwidth <200 Hz
Weight ≤60g
Environmental Specifications
Operating temperature -45°C~100°C
Storage temperature -55°C~120°C
Random vibration 15g(20~2000Hz)
Sine vibration 15g peak,50 to 800Hz
Working shock 200g
Shock 500g
Dimensions

Unit: mm

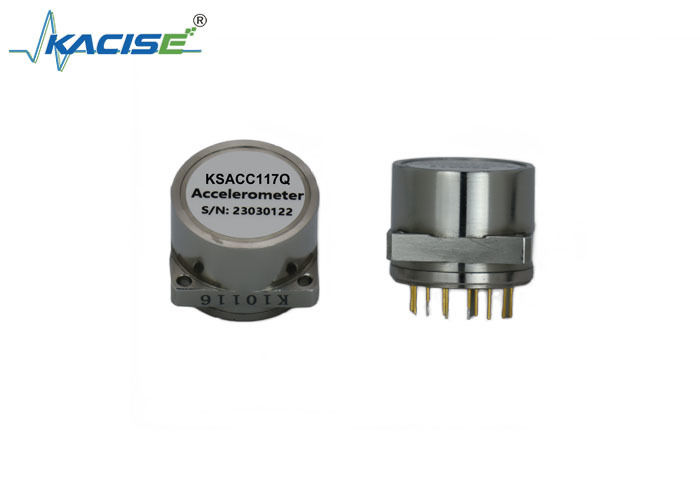

KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power 1
KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power 2
