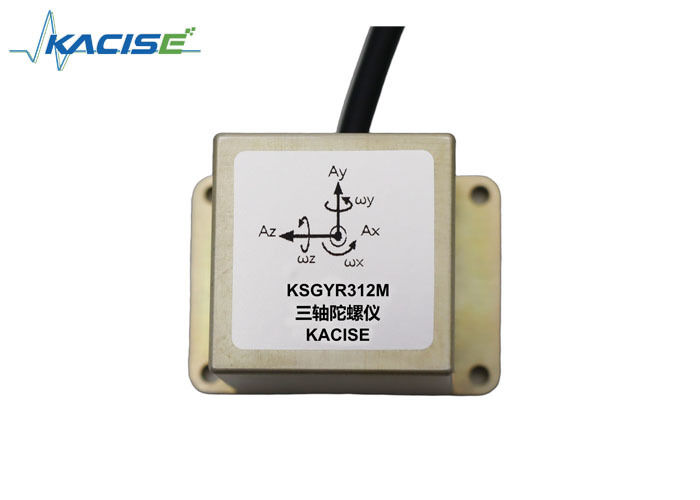

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

Triaxial MEMS gyro sensor ±300°/s

5Vdc electronic gyroscope sensor

MEMS gyro sensor with warranty

Place of Origin:

CHINA

ブランド名:

kacise

証明:

ce

Model Number:

KSGYR312M

連絡 ください
引金 を 求め て ください
製品詳細
入力電圧:
5VDC
入力電流mA:
<10mA
オフセット電圧:
1.65±0.02V
出力電圧:
0.66 ~2.64V
範囲:
±300x
サイズ:
43×30.5×30.5mm
ハイライト:

Triaxial MEMS gyro sensor ±300°/s

,

5Vdc electronic gyroscope sensor

,

MEMS gyro sensor with warranty

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明
KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc
Product Attributes
Input voltage 5Vdc
Incoming current <10 mA
Offset voltage 1.65±0.02V
Output voltage 0.66~2.64V
Range ±300X、Y、Z°/s
Size 43×30.5×30.5mm
Product Description
KSGYR312M Triaxial Universal Angular Rate Gyro

The KSGYR312M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, high reliability, and rugged packaging with Self-Test functionality.

Operating Principle

The KSGYR312M operates on the resonator gyro principle, featuring two polysilicon sensitive structures with high-frequency vibrating frames. These frames generate Coriolis motion at angular rates, producing electrical signals that are amplified and modulated to output signals proportional to angular rate.

Key Features
  • Low power consumption
  • Wide operating temperature range
  • Broad bandwidth
  • Compact size
  • DC input/output
  • Fast start-up
  • High performance at low cost
Applications
  • Automotive electronics
  • Aircraft guidance and control
  • Attitude reference systems
  • Platform stabilization
  • Robotics and antenna stabilization
  • Camera and digital camera gyros
KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc 0
Technical Specifications
Power Supply Parameters
Power Voltage 5V DC
Power at 25°C 50mW
Supply current ≤10mA
Output Range 0.66~2.64(V)
Product Performance
Range ±300°/s
Size 43mm×30.5mm×30.5mm
Run-up time 0.005s
Bias 1.65±0.02V dc
Bias stability ≤12°/h
Bias temperature sensitivity ≤1°/s
Scale factor 3.3mV/°/s±0.05mV/°/s
Scale factor nonlinearity ≤0.05%
Noise ≤0.02°/s/g
Threshold ≤2%
Resolution ≤0.02°/s/√Hz;≤0.1°/s
Bandwidth ≥80Hz
Weight <50g
MTBF 100000h
Environmental Specifications
Operating temperature -45°C~+85°C
Storage temperature -65°C~+125°C
Shock resistance 20000g
Dimensions
KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc 1
Interface Specification
Color Red Black Blue Yellow White Shield
Signal Name +12Vdc Power and signal Ground ωXOUT ωYOUT ωZOUT Shell ground
