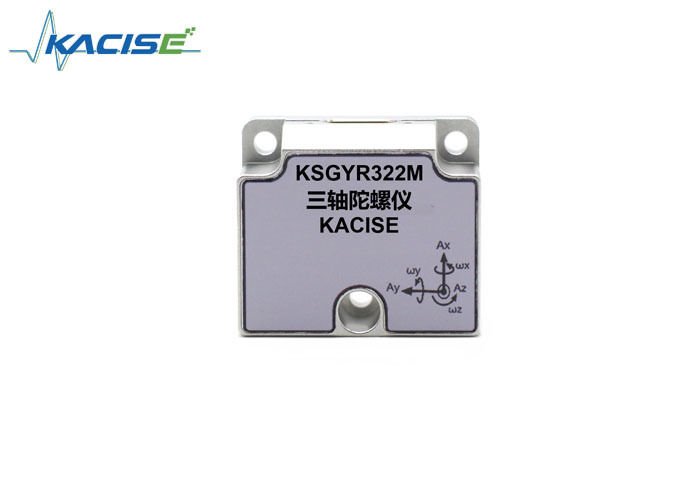

KSGYR322M Three Axis Digital Gyro

three axis digital gyro sensor

digital gyro with warranty

fluid level meter gyro

Place of Origin:

CHINA

ブランド名:

KACISE

証明:

CE

Model Number:

KSGYR322M

連絡 ください
引金 を 求め て ください
製品詳細
入力電圧:
5V DC
電力散逸:
≤1W @5V DC
範囲:
±500(三軸)°/s
バイアス:
≤±0.1°/s(500°/s)
バイアス安定性:
≤0.5°/h(アラン偏差)
バイアス反復性:
≤0.05°/s
サイズ:
45×39×20mm
ハイライト:

three axis digital gyro sensor

,

digital gyro with warranty

,

fluid level meter gyro

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明
KSGYR322M Three Axis Digital Gyro
Product Attributes
Attribute Value
Input voltage 5V DC
Power dissipation ≤1W @5V DC
Range ±500(triaxial)°/s
Bias ≤±0.1°/s(In 500°/s)
Bias stability ≤0.5°/h(Allan deviation)
Bias repeatability ≤0.05°/s
Size 45×39×20mm
Product Description
KSGYR322M Three Axis Digital Gyro
Product Introduction

KSGYR322M series solid state angular rate sensor (gyro) measures angular rate using micromechanoelectronic system (MEMS) technology chips. Manufactured with bipolar metal oxide semiconductor (BIMOS) technology production process and spherical grid arrangement of current carrier welding technology, it offers high reliability and package ruggedness. Features include Self-Test function for in-machine detection (BIT).

Operating Principle

KSGYR322M series angular rate sensors operate on the principle of resonator gyro. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are driven electrostatically to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion generated at the angular rate, producing an electrical signal proportional to the angular rate after amplification and modulation.

Features
  • Zero bias calibration
  • Temperature drift compensation
  • Wide measurement range
  • Wide bandwidth
  • Non-linear correction
  • Wide operating temperature range
  • Compact size and light weight
  • High impact acceleration resistance
Applications
  • Intelligent automobile systems
  • Geological exploration equipment
  • Robotics
  • Missile guidance and control
  • Aircraft stability control
  • Strapdown inertial navigation
  • Antenna stability and camera stabilization
KSGYR322M Three Axis Digital Gyro 0
Technical Specifications
Power Supply Parameters
Power Voltage 5V DC
Power @25°C 1W
Product Performance
Range ±500°/s
Bias ≤±0.1°/s
Bias stability ≤0.5°/h
Bias temperature sensitivity ≤4°/s
Scale factor nonlinearity ≤0.05%
Resolution ≤0.01°/s
Weight <60g
MTBF 10000h
Environmental Specifications
Operating temperature -40°C to +80°C
Storage temperature -55°C to +85°C
Random vibration 6.06g
Shock resistance 5000g
Dimensions
KSGYR322M Three Axis Digital Gyro 1
