KSGYR131M Single Axis Digital Gyro Sensor ±75°/s Range

KSGYR131M Single Axis Digital Gyro Sensor ±75°/s Range

single axis digital gyro sensor

gyro sensor ±75°/s range

digital gyro sensor with warranty

Place of Origin:

CHINA

ブランド名:

kacise

証明:

ce

Model Number:

KSGYR131M

連絡 ください
引金 を 求め て ください
製品詳細
電源電圧:
+6V~+20V DC
オンする時間:
≤2s
範囲:
±75°/s
バイアス:
0°/s±1°/s
バイアス安定性 ((1σ) @ 25°C:
≤15°/h
動作温度:
-40°C+85°C
ハイライト:

single axis digital gyro sensor

,

gyro sensor ±75°/s range

,

digital gyro sensor with warranty

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8work days
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明

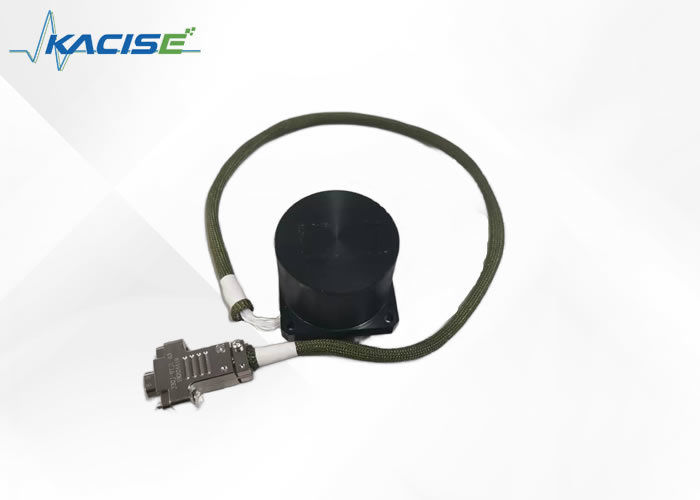

KSGYR131M Single Axis Digital Gyro Sensor ±75°/s Range
Key Specifications
Attribute Value
Power Voltage +6V~+20V DC
Turn-on time ≤2s
Range ±75°/s
Bias 0°/s±1°/s
Bias stability(1σ)@25°C ≤15°/h
Operating temperature -40°C~+85°C
Product Overview
The KSGYR131M single-axis digital quartz gyroscope measures angular velocity information in real time for carriers including combat vehicles, UAVs, and aerial bombs. Ideal for inertial navigation, flight control, and attitude stabilization systems, it finds applications across petroleum, coal, water resources, automotive, marine, and aviation industries.
Operating on the principle of quartz deformation during rotation, it calculates angular speed and direction by measuring changes in crystal vibration frequency.
Key Features
  • High resolution digital output
  • Wide bandwidth with low power consumption
  • Exceptional reliability in harsh conditions
  • Compact size with fast start-up (≤2s)
  • Built-in temperature compensation
  • Extended operating temperature range (-40°C to +85°C)
Applications
  • Petroleum exploration and drilling
  • Aerospace and aviation systems
  • Marine navigation equipment
  • Military weapon guidance
  • Vehicle stabilization systems
KSGYR131M Single Axis Digital Gyro Sensor ±75°/s Range 0
Technical Specifications
Power Supply Parameters
Power Voltage +6~+20V DC
Performance Characteristics
Turn-on time 2s
Bias 0°/s±1°/s
Bias stability ≤15°/h
Bias temperature sensitivity ≤1°/s
Range ±75°/s
Weight <150g
Power consumption @25°C 0.3W
Supply current ≤20mA
Dimensions 35mm×35mm×40mm
Environmental Specifications
Operating temperature -40°C~+85°C
Storage temperature -55°C~+100°C
