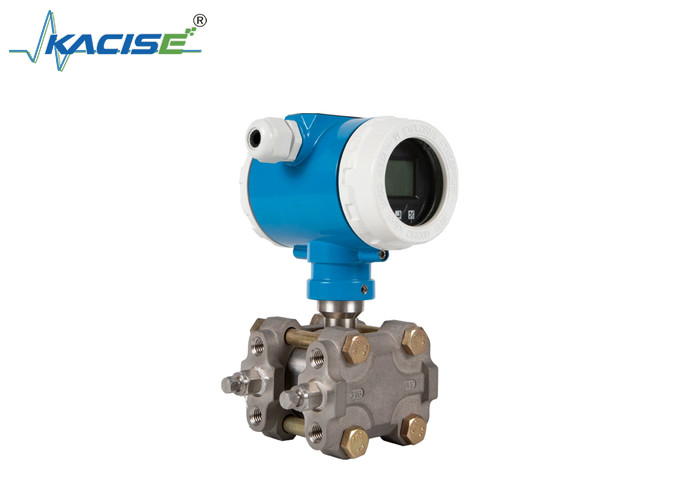

KAW103 Differential Pressure Level Pressure Transmitter for Processing Control Field

KAW103 Differential Pressure Level Pressure Transmitter for Processing Control Field

Product Description

Differential pressure level transmitter with remote seals .,

Model KAW103

Accuracy class : 0.075.,

Output signal: 4-20mA + HART, Square Root output

Process connection: flanged 2" ANSI B16.5 CL300 RF.,

Capillary length (min.): default 3 meters each side ( high pressure & low pressure side)

Supply: DC 24V.,

Ingress protection: IP65/IP66

ExiaIICT6., Local indication LCD.

The presence of pouring rings (material stainless steel),

Diap. meas.: 0-20.81kPa (The range of the measuring cell is not more than 0-50 kPa)

Medium density: 965kg/m3

Process temperature: 200°C

Ambient temperature: -20...60°C

Product Introduction

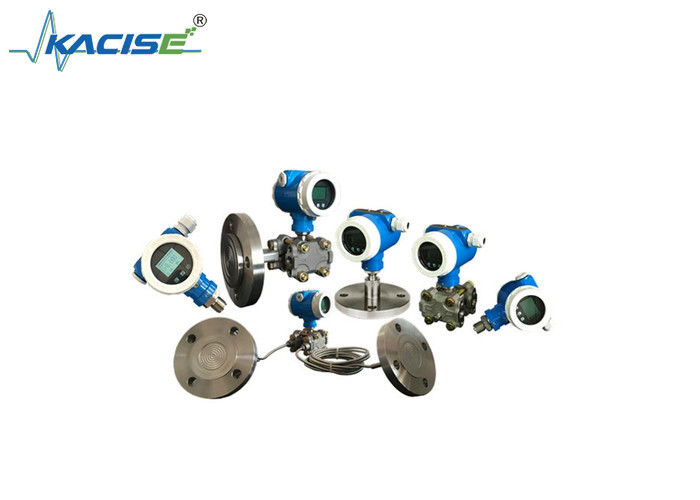

The KAW103 Differential Pressure Level Pressure Transmitter is specifically designed for applications in the processing control field. It plays a crucial role in measuring the pressure of gases, vapors, or liquids, as well as the level, volume, or mass of liquids. This transmitter is equipped with remote seals and features a double flange design, which enhances its reliability and adaptability in various industrial environments.
With an accuracy class of 0.075, it provides highly precise measurement results. The output signal is 4-20mA + HART, along with a square root output option, ensuring seamless communication with other control systems. The process connection is a flanged 2"" ANSI B16.5 CL300 RF, and the default capillary length on each side (high pressure and low pressure side) is 3 meters. Powered by DC 24V, it has an ingress protection rating of IP65/IP66 and an explosion protection rating of ExiaIICT6. Additionally, it comes with a local indication LCD for easy monitoring.

Features

• High Precision: An accuracy class of 0.075 ensures accurate pressure and level measurements.
• Versatile Output: The 4-20mA + HART output signal, along with square root output, enables compatibility with a wide range of industrial control systems.
• Reliable Design: The double flange with remote seals and stainless steel pouring rings provides durability and resistance to harsh industrial conditions.
• Flexible Connection: The flanged 2"" ANSI B16.5 CL300 RF process connection and adjustable capillary length (default 3 meters each side) offer installation flexibility.
• Good Protection: IP65/IP66 ingress protection and ExiaIICT6 explosion protection ratings ensure safe operation in various environments.
• Local Monitoring: The local indication LCD allows for easy on-site monitoring of measurement data.
• Wide Temperature Range: It can operate in an ambient temperature range of -20°C to 60°C and a process temperature of up to 200°C.
• High Pressure Measurement: Capable of measuring pressures up to 700bar, suitable for high-pressure applications.

Product Applications

1. Gauge and absolute pressure measurement of gas, vapour or liquid in various processing control fields
2. Level, volume or mass measurement in liquid;
3. Working with detecting elements to measure flow of gas, vapour and liquid ( volume and mass flow)
4. Highest measurement pressure up to 700bar.
