ブランド名:
SIEMENS
モデル番号:

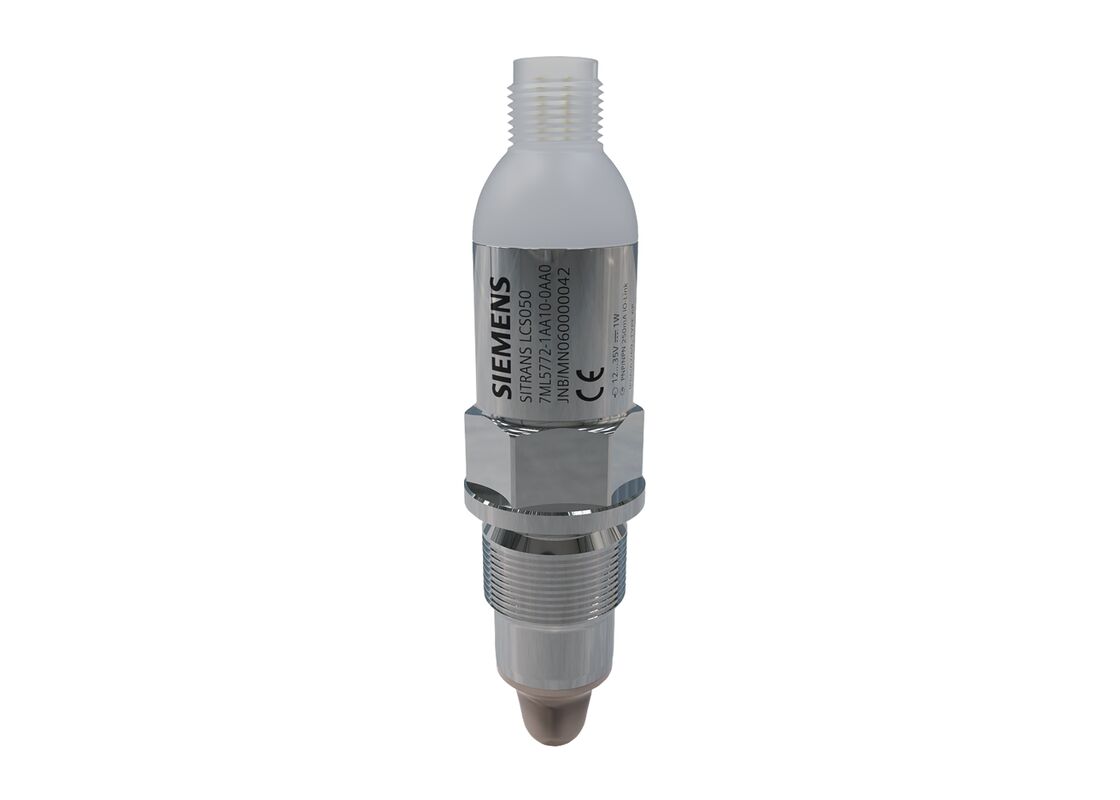

LCS050
| Parameter | Specification |
|---|---|
| Measuring principle | Capacitance level detection |
| Measured variable | Change in picoFarad (pF) |
| Output signal | Transistor (PNP/NPN) IO-Link acc. to IEC 61131-9 |
| Fail-safe mode | Min. or max. |
| Hysteresis | Approx. 1 mm (0.04 inch) |
| Location | Indoor/outdoor |
| Ambient temperature | -40 to +70 °C (-40 to +158 °F) |
| Storage temperature | -40 to +80 °C (-40 to +176 °F) |
| Installation category | I |
| Pollution degree | 4 |
| Relative dielectric constant εr | Min. 2 |
| Process temperature | -20 to +100 °C (-4 to +212 °F) up to 1 hour, 135 °C (275 °F) |
| Pressure (vessel) | -1 to 25 bar/-100 to 2,500 kPa (-14.5 to 363 psig) |
| Degree of protection (M12x1 plug) | IP66/IP67/IP69 |
| Design | Enclosure/integral cable version |
| Body material | 316L and plastic (polycarbonate) |
| Sensor length | 15 mm (0.59 inch) |
| Process connection material | Connection: 316L stainless steel Device seal: FKM (hygienic version EPDM) Sensor tip: PEEK |
| Connection (Enclosure version) | M12 x 1 plug |
| Process connection | Pipe thread, cylindrical (DIN 3852-A) G½, G¾, G1 Pipe thread, conical (ASME B1.20.1) ½ NPT, ¾ NPT, 1 NPT Metric fine thread, cylindrical M24 x 1.5 |
| Power supply | 12 to 35 V DC |
| Certificates and approvals | General: CE, UKCA |
