Teqwave I – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

連絡ください

引金を求めてください

Teqwave I – Ultrasonic concentration meter

製品詳細

プロセス温度:

0 ～ 100 °C (32 ～ 212 °F)

プロセス圧力:

最大。 20 °C で 16 bar (68 °F で 232 psi)

表示/操作:

LEDステータス表示TFTカラータッチディスプレイ

生産量:

Modbus TCP、リレー（AC 50V、DC30V 1A）、4～20mA/0～10V アナログ出力

ハイライト:

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Prosonic Flow E 100 ultrasonic flowmeter

最高の価格を入手する

Proline Prosonic Flow G 300 ultrasonic flowmeter

最高の価格を入手する

Proline Prosonic Flow G 500 ultrasonic flowmeter

最高の価格を入手する

Proline Prosonic Flow I 400 ultrasonic flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

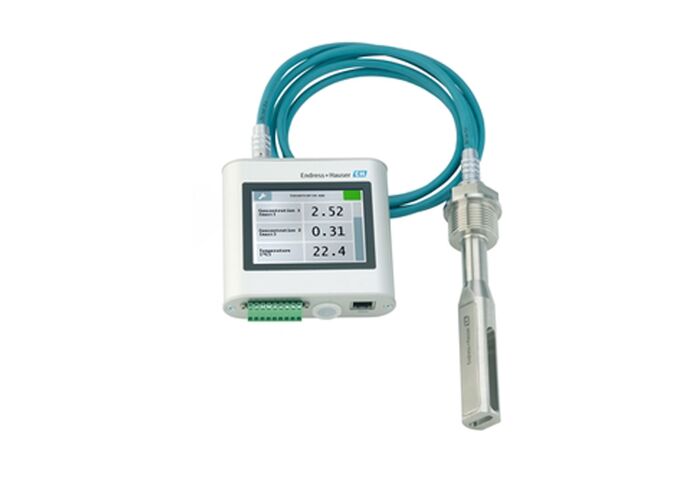

Teqwave I – Ultrasonic Concentration Meter

The Teqwave I insertion measuring device delivers precise real-time liquid analysis for vessels and larger pipes. This advanced ultrasonic concentration meter provides continuous monitoring of multiple parameters simultaneously, reducing operational costs while ensuring product quality.

Key Specifications

Maximum Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Temperature: 0 to 100°C (32 to 212°F) Pressure: max. 16 bar at 20°C (232 psi at 68°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti), others available on request

Primary Benefits

Easy and efficient - Real-time in situ liquid analysis
Full transparency - Constant monitoring of product quality without sampling
Highest process safety - Reliable metering with robust, maintenance-free sensor
Cost-saving - Fewer measuring points due to multivariable measurement
Customized usage - Innovative application concept, expandable for changing measuring tasks
Simplified process control - User-friendly operation and clear status visualization
Local data backup - Integrated storage for measured values up to 7.5 years

Technical Features

Sensor Specifications

Insertion lengths: 180 mm (7 in) or 500 mm (20 in)
Accurate measurement independent of flow profile
Material: Stainless steel 1.4571 (316Ti)
Ingress protection: IP68 (with plugged-in cable)

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
Outputs: 4-20 mA, Modbus TCP, Relay (AC 50V, DC30V 1A), 0 to 10V Analog
Housing material: Anodized aluminum and glass
Ingress protection: IP40

Measurement Capabilities

The Teqwave I simultaneously measures concentration, sound velocity, temperature, acoustic density, and dispersion using advanced ultrasonic technology. Its acoustic waveguide detects even the smallest changes with exceptional precision.

Electrical & Safety

Power Supply	DC 24V ±20%
Certifications	CE, UKCA, RCM
Ex Certification	Non-hazardous area
