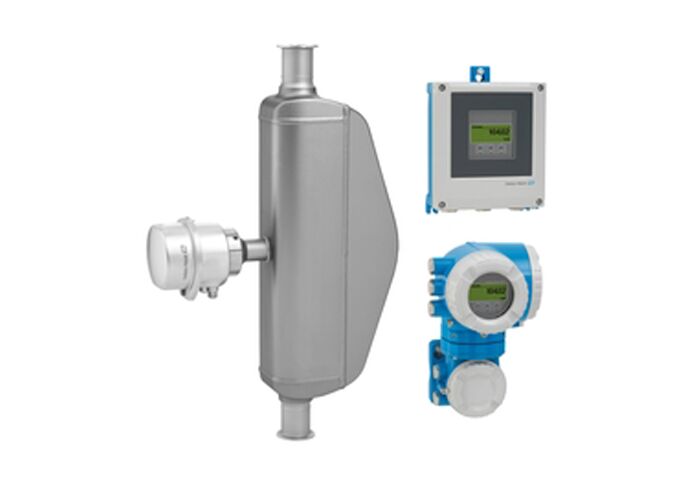

Proline Promass S 500 Coriolis flowmeter

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

起源の場所:

スイス

ブランド名:

Endress+Hauser

証明:

モデル番号:

プロリンプロマス S 500

連絡ください

引金を求めてください

Proline Promass S 500 Coriolis flowmeter

製品詳細

測定範囲:

0から70,000kg/h (0から2570lb/min)

マックス。プロセス圧力:

PN 40,クラス 150,20K

中程度の温度範囲:

〜50 °Cから+150 °C (〜58 °Fから+302 °F)

材料を収容する送信機:

AlSi10Mg、コーティング;ポリカーボネート

危険区域の承認:

ATEX, IECEx, CCSAus, NEPSI, INMETRO, EAC, KC について

製品の安全:

CE,Cマーク,EACマーク

ハイライト:

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

支払いと送料の条件

最小注文数量

1個

パッケージの詳細

各ユニットには個別のボックスがあり、すべてのボックスは標準パッケージまたは顧客リクエストに詰め込まれています

受渡し時間

5～8営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力

交渉可能な1週間あたり1000個/ピース

Proline Promass S 300 Coriolis flowmeter

最高の価格を入手する

Proline Promass P 500 Coriolis flowmeter

最高の価格を入手する

Proline Promass Q 300 Coriolis flowmeter

最高の価格を入手する

Proline t-mass F 500 thermal mass flowmeter

最高の価格を入手する

連絡ください

今連絡してください

製品説明

Proline Promass S 500 Coriolis Flowmeter

Advanced Coriolis flowmeter designed for hygienic applications in the food and beverage industry, featuring optimal cleanability and self-drainable single-tube system.

Key Specifications

Max. Measurement Error

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

-50 to +150 °C (-58 to +302 °F)

Max. Process Pressure

PN 40, Class 150, 20K

Field of Application

Designed for hygienic applications in the food and beverage industry requiring optimal cleanability. The self-drainable single-tube system ensures careful fluid treatment with maximum installation flexibility and operational safety.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features: Large range of hygienic process connections, 3-A and EHEDG conform, fast recovery from CIP/SIP, IP69 protection.

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control, WLAN access, standard cable between sensor and transmitter.

Additional Specifications

Nominal Diameter

DN 8 to 50 (⅜ to 2")

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Ambient Temperature

Standard: -40 to +60 °C
Option: -50 to +60 °C

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE 3-A EHEDG cGMP PED CRN
