ブランド名:
Yokogawa
モデル番号:
センサーSC25V

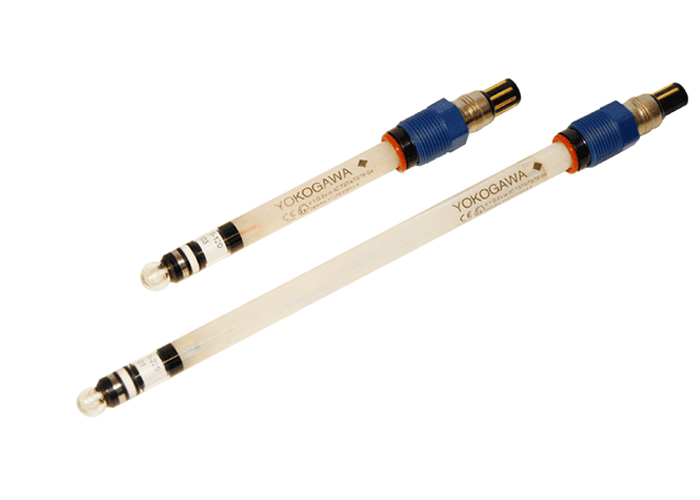

For pH measurement and control, stable, reliable, and accurate readings are essential. The SC25V pH sensor is engineered to deliver consistent, precise results in all applications.
The integrated temperature sensor is positioned near the pH measuring glass, enhancing temperature compensation accuracy and, consequently, pH measurement precision. The large titanium liquid earth minimizes interference from stray or ground loop currents that could compromise the reference sensor.
| Parameter | Specification |
|---|---|
| Isothermal point | pH 7 / 3.3M KCl |
| Reference system | Ag/AgCl with saturated KCl |
| Glass impedance | G-Glass: 200 MΩ nominal L-Glass: 775 MΩ nominal |
| Junction resistance | < 5 kΩ |
| Liquid outlet | Non-flow single junction |
| Temperature element | Pt1000 to IEC 751 |
| Asymmetry potential | 8 ± 15 mV |
| Slope | > 96% (of theoretical value) |
| Sensor length | 120 mm and 225 mm |
| Parameter | Range |
|---|---|
| pH | 0 to 14 |
| Temperature (G-Glass) | -10 to +80°C (14 to 176°F) |
| Temperature (L-Glass) | +15 to +130°C (59 to 266°F) |
| Pressure | 0 to 10 barg (0 to 145 psi) 0 to 0.985 barg (0 to 14.36 psi) (under pressure) |
| Conductivity | > 10 µS/cm |
