起源の場所:
中国
ブランド名:
KACISE
モデル番号:
KWS-950S

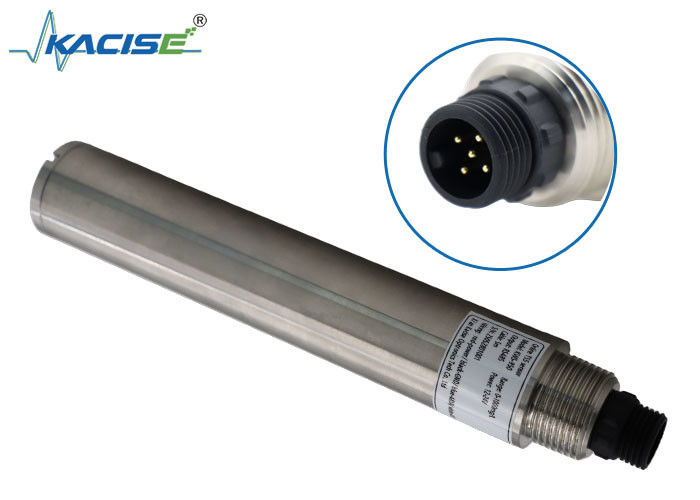

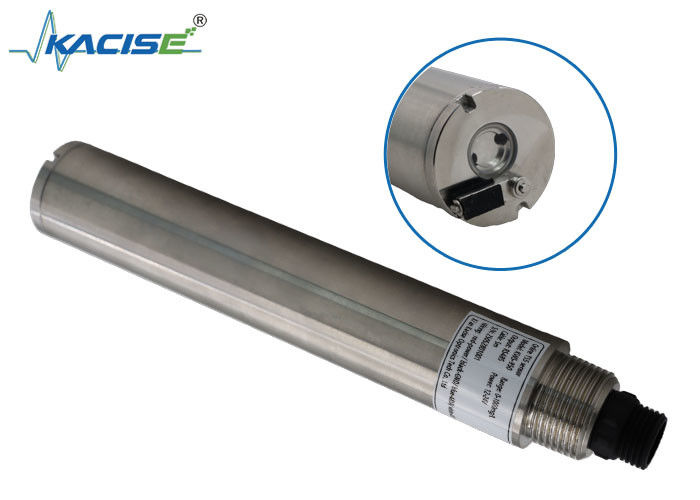

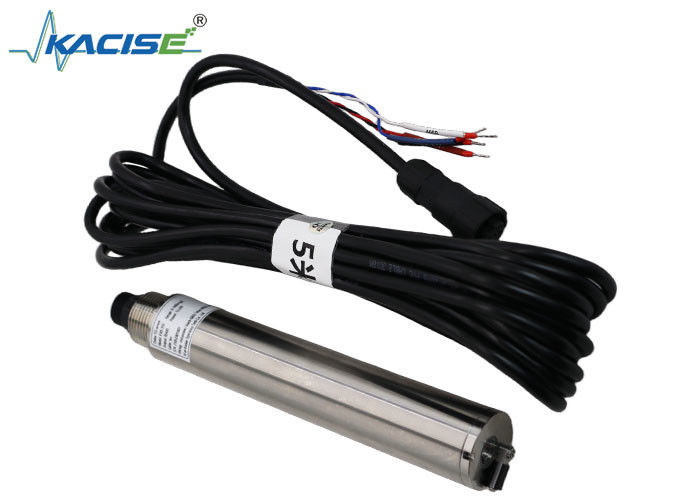

KWS-950S オンライン TSS センサー
はじめに
KWS-950 統合オンライン TSS センサーは、散乱光懸濁液測定の原理を使用して設計および製造されています。光線が水サンプルに入射すると、光は水サンプル中の浮遊物質によって散乱され、入射光に垂直な散乱光の強度を測定し、内部校正値と比較して計算することにより、水サンプル中の散乱光が計算され、最終値を出力するために線形化されます。
特徴
技術仕様
Model | KWS-950S |
Measuring principle | Scattered light method |
Measuring range | 0 to 2000 mg / L |
Resolution | 0.1 mg/L, 0.1 °C |
Precision | ± 5% |
Calibration method | Two-point calibration |
Temperature compensation | Automatic temperature compensation (Pt1000 ) |
output method | RS-485 (Modbus/ RTU ) |
Working conditions | 0 to 50 °C, < 0 .2MPa |
storage temperature | - 5 to 65 °C |
Installation method | Immersion mounting, 3/4" NPT thread |
Cable length | 5 meters, other lengths can be customized |
Power consumption | < 0.5 W |
power supply | 1 2 to 24 VDC ± 10% |
Protection level | IP68 |
Casing Material | Stainless steel |
Self-Cleaning Function | Selectable |
