KAW110 Digital Differential Air Pressure Sensor Widely Applied in Industrial and Construction Fields

KAW110 Digital Differential Air Pressure Sensor Widely Applied in Industrial and Construction Fields

産業用デジタル差気圧センサー

KAW110 デジタル差気圧センサー

建築用デジタル差気圧センサー

Place of Origin:

CHINA

ブランド名:

KACISE

証明:

CE

Model Number:

KAW110

連絡 ください
引金 を 求め て ください
製品詳細
圧力範囲:
-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Applicable media:
Gas, Steam
Accuracy:
±0.1%FS
安定性:
0.8%F.S./年
Max overload:
250% of sensor range
Output signals:
2-Wire 4-20mA/0-10V/RS485/2xPNP
ハイライト:

産業用デジタル差気圧センサー

,

KAW110 デジタル差気圧センサー

,

建築用デジタル差気圧センサー

支払いと送料の条件
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
受渡し時間
5~8 営業日
支払条件
L/C、D/A、D/P、T/T、Western Union、MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
製品説明

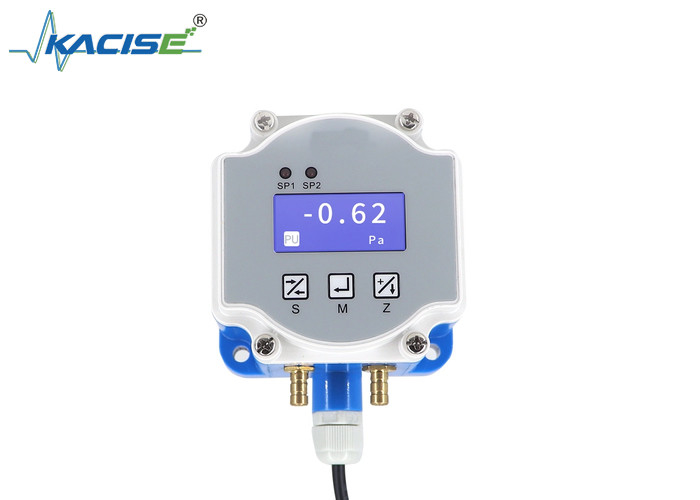

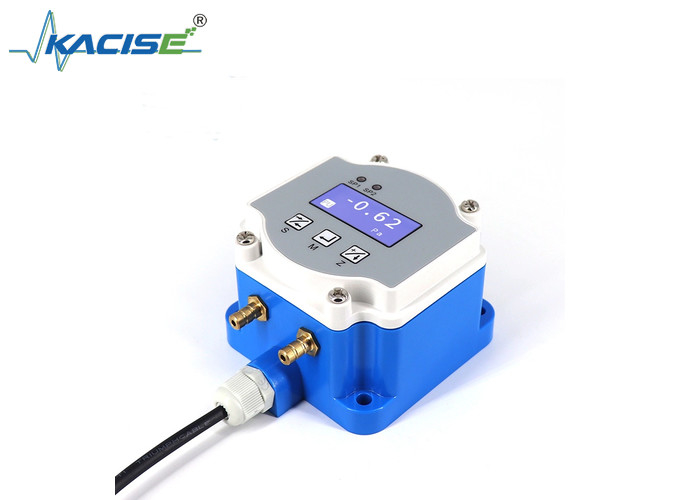

KAW110 Digital Differential Air Pressure Sensor Widely Applied in Industrial and Construction Fields





Product Introduction

The KAW110 Digital Differential Air Pressure Sensor, featuring an aluminum housing and stress isolation technology, has an integrated and compact structure design. Equipped with intelligent compensation technology, it is highly suitable for measuring wind pressure, wind speed, and flow.

In the industrial field, it plays a crucial role in various applications. For example, in power plants, it accurately measures the primary and secondary air pressure of boilers. In mines, it monitors the ventilation system. In the construction field, it is used for indoor ventilation monitoring, measuring the pressure of fans and air ducts. It also contributes to the wind pressure testing in subways and environmental projects.

This sensor is applicable to media such as gas and steam, and can measure gauge pressure and differential pressure. The pressure range includes options like -0.25-0.25kPa, -0.5-0.5kPa, -1-1kPa, -2-2kPa, -7-7kPa, and -100-100kPa. With an accuracy of ±0.1%FS and a stability of 0.8%F.S. per year, it ensures reliable measurement results. It can withstand a maximum overload of 250% of the sensor range. The output signals are diverse, including 2-Wire 4-20mA, 0-10V, RS485, and 2xPNP. The electrical connections can be made via terminals or M12 connectors, and it is powered by a 12-32V DC power supply. The compensation temperature range is 0-60℃.



Features

  • Compact and Durable Design: The aluminum housing and stress isolation technology provide a compact and sturdy structure.
  • Intelligent Compensation: The intelligent compensation technology ensures accurate measurement of wind pressure, wind speed, and flow.
  • Wide Pressure Range: Covers a variety of pressure ranges to meet different application requirements.
  • High Accuracy: Achieves an accuracy of ±0.1%FS for reliable pressure measurement.
  • Good Stability: Maintains a stability of 0.8%F.S. per year for consistent performance.
  • Strong Overload Capacity: Can handle a maximum overload of 250% of the sensor range.
  • Diverse Output Signals: Offers multiple output signal options for easy integration with different systems.
  • Flexible Electrical Connections: Provides terminal and M12 connector options for convenient electrical connections.
  • Suitable Temperature Compensation: The compensation temperature range of 0-60℃ ensures accurate measurement in a certain temperature environment.

Application



It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.



Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media Gas, Steam
Pressure Measurement Gauge pressure, Differential pressure
Pressure range -0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy ±0.1%FS
Stability 0.8%F.S./Year
Max overload 250% of sensor range
Output signals 2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections Terminal or M12
Power Supply 12-32V DC
Compensation Temperature 0-60℃
